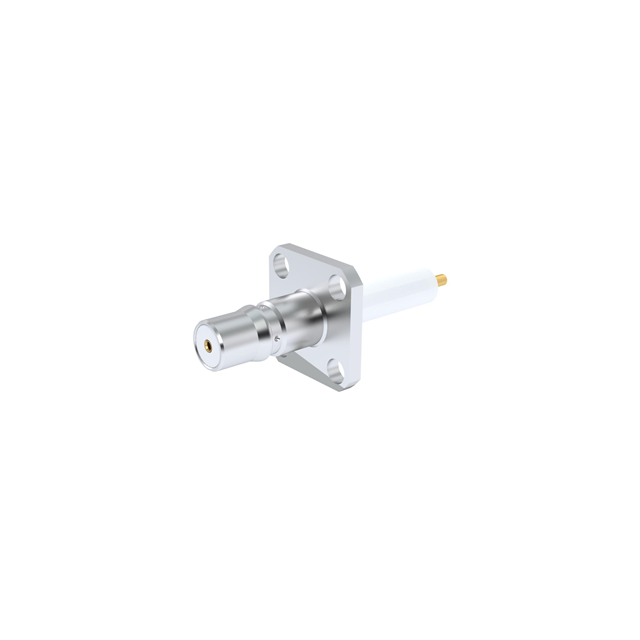

R123415000

Active

Radiall USA, Inc.

RF CONNECTOR, FEMALE, PANEL MOUNT, SOLDER TERMINAL, RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF CONNECTOR, FEMALE, PANEL MOUNT, SOLDER TERMINAL, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R123415000

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Mounting Feature	Center Contact Plating	Body Finish	Voltage Rating	Fastening Type	Contact Termination	Body Material	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Impedance	Connector Type	Number of Ports	Mounting Type	Dielectric Material	Center Contact Material	Frequency - Max [Max]	Features
Radiall USA, Inc. R123415130
Radiall USA, Inc. R123415000	Flange	Gold	White Bronze	500 V	Snap-On	Solder	Brass	Solder	-40 °C	105 ░C	Silver	50 Ohms	Female Socket Receptacle	1	Panel Mount Through Hole	Polytetrafluoroethylene (PTFE)	Beryllium Copper	6000 MHz	Extended Insulation
Radiall USA, Inc. R123415110

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.02

General part information

QMA Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole Solder
