PLA.M1.0GL.LG

Active

LEMO

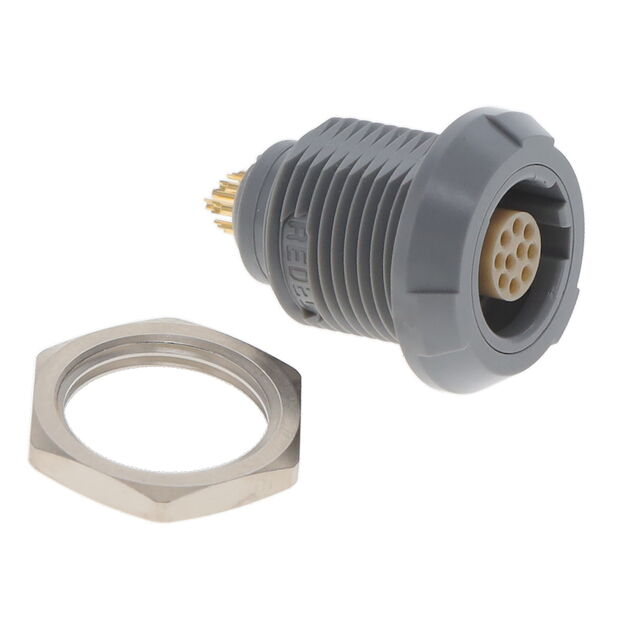

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PLA.M1.0GL.LG

Active

LEMO

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.28
		10	$ 32.70
		25	$ 29.66
		50	$ 27.61
		100	$ 25.75
		250	$ 23.56

Description

General part information

PLA.M1 Series

10 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PLA.M1.0GL.LG	PLA.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray	Gray, Blue, Green
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	3 A	2 - 3 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut, Bulkhead - Front or Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	10	10 - 14
Operating Temperature [Max]	150 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	A	A
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M10	M10, M14
Shielding	Unshielded	Unshielded
Termination	-	Solder

PLA.M1 Series

CONN RCPT FMALE 10P SOLDER CUP

Part	Shielding	Shell Size - Insert	Shell Material	Ingress Protection	Connector Type	Insert Material	Primary Material	Fastening Type	Applications	Current Rating (Amps)	Color	Mounting Feature	Number of Positions	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Mounting Type	Termination
LEMO PLA.M1.0GL.LG	Unshielded	M10	Polysulfone (PSU)	IP50	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Plastic	Detent Lock, Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	3 A	Gray	Bulkhead - Rear Side Nut	10	Gold	150 °C	-50 °C	A
LEMO PLA.M1.0SL.LA	Unshielded	M10	Polyetherimide (PEI)	IP50	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Plastic	Detent Lock, Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	3 A	Blue, Gray	Bulkhead - Rear Side Nut	10	Gold	170 °C	-50 °C	A
LEMO PLA.M1.0SL.LG	Unshielded	M10	Polyetherimide (PEI)	IP50	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Plastic	Detent Lock, Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	3 A	Gray	Bulkhead - Rear Side Nut	10	Gold	170 °C	-50 °C	A
LEMO PLA.M1.0SL.NV	Unshielded	M10	Polyetherimide (PEI)	IP50	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Plastic	Detent Lock, Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	3 A	Gray, Green	Bulkhead - Front or Rear Side Nut	10	Gold	170 °C	-50 °C	A	Panel Mount, Through Hole	Solder
LEMO PLA.M1.4SL.LVZ	Unshielded	M14	Polyetherimide (PEI)	IP50	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Plastic	Detent Lock, Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	2 A	Gray, Green	Bulkhead - Rear Side Nut	14	Gold	170 °C	-50 °C	A
