GSF1.2206.01

Active

SCHURTER Inc.

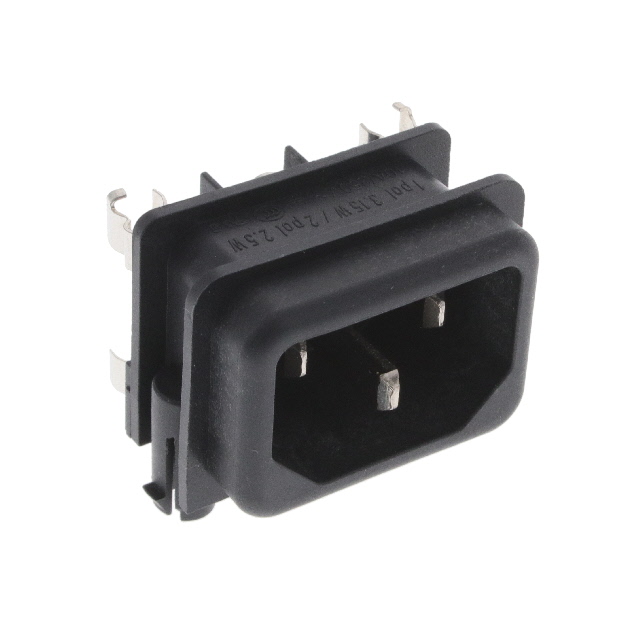

PWR ENT MOD RCPT IEC320-C14

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14

Technical Specifications

Parameters and characteristics for this part

Specification	GSF1.2206.01

Accomodates a Fuse	True
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C14

Part	Accomodates a Fuse	Connector Type	Connector Style	Filter Type	Approval Agency	Voltage Rating - Appliance Inlet	Material Flammability Rating	Current Rating - Appliance Inlet	Ingress Protection
SCHURTER Inc. GSF1.2206.01		Receptacle, Male Blades - Module	IEC 320-C14	Unfiltered - Commercial	CCC, CSA, ENEC, UL	250 VAC	UL94 V-0	10 A	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14

Technical documentation and resources
