A29000-065

Active

Omnetics

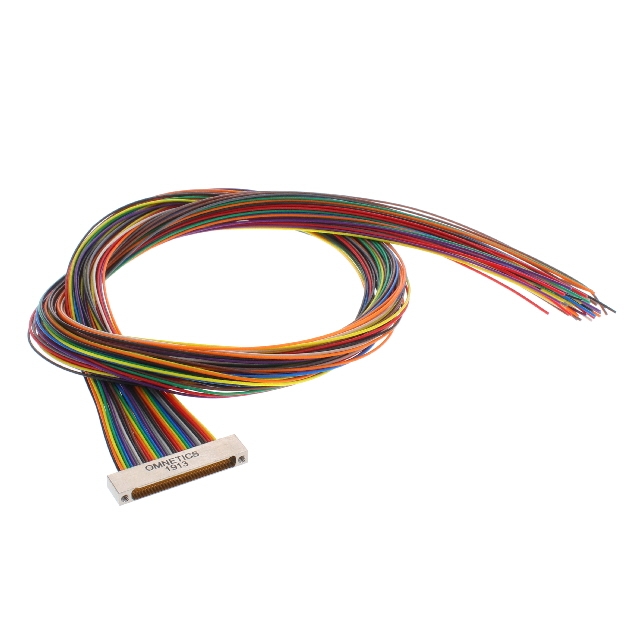

CABLE ASSY D-NANO-D 65P 457.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A29000-065

Active

Omnetics

CABLE ASSY D-NANO-D 65P 457.2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 443.60
		10	$ 349.47
		25	$ 319.84

Description

General part information

A29000 Series

D-Sub Cable Assembly D-Type, Nano-D Multiple, Individual 1.50' (457.20mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A29000-065	A29000 Series

1st Connector	Receptacle, Female Sockets	Receptacle, Female Sockets
2nd Connector	Individual Wire Leads	Individual Wire Leads
Color	Multiple, Individual	Multiple, Individual
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Number of Positions	65	21 - 85
Shielding	Unshielded	Unshielded
Type	D-Type, Nano-D	D-Type, Nano-D

A29000 Series

CABLE ASSY D-NANO-D 85P 457.2MM

Part	Type	Shielding	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	1st Connector	Number of Positions	Color	2nd Connector	Length [x]	Length [x]
Omnetics A29000-185	D-Type, Nano-D	Unshielded	50 µin	1.27 µm	Gold	Female Sockets, Receptacle	85	Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft
Omnetics A29000-151	D-Type, Nano-D	Unshielded	50 µin	1.27 µm	Gold	Female Sockets, Receptacle	51	Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft
Omnetics A29000-165	D-Type, Nano-D	Unshielded	50 µin	1.27 µm	Gold	Female Sockets, Receptacle	65	Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft
Omnetics A29000-125	D-Type, Nano-D	Unshielded	50 µin	1.27 µm	Gold	Female Sockets, Receptacle		Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft
Omnetics A29000-065	D-Type, Nano-D	Unshielded	50 µin	1.27 µm	Gold	Female Sockets, Receptacle	65	Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft
Omnetics A29000-037	D-Type, Nano-D	Unshielded	50 µin	1.27 µm	Gold	Female Sockets, Receptacle	37	Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft
Omnetics A29000-131	D-Type, Nano-D	Unshielded	50 µin	1.27 µm	Gold	Female Sockets, Receptacle	31	Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft
Omnetics A29000-021	D-Type, Nano-D	Unshielded	50 µin	1.27 µm	Gold	Female Sockets, Receptacle	21	Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft
Omnetics A29000-137	D-Type, Nano-D	Unshielded	50 µin	1.27 µm	Gold	Female Sockets, Receptacle	37	Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft
Omnetics A29000-085	D-Type, Nano-D	Unshielded	50 µin	1.27 µm	Gold	Female Sockets, Receptacle	85	Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft
