336503-14-0150

Active

Amphenol RF

AMC RIGHT ANGLE PLUG TO MCX STRAIGHT BULKHEAD JACK 1.37 MM 50 OHM 150 MM ( 5.9 INCHES)

Search across all available documentation for this part.

Active

Amphenol RF

AMC RIGHT ANGLE PLUG TO MCX STRAIGHT BULKHEAD JACK 1.37 MM 50 OHM 150 MM ( 5.9 INCHES)

Technical Specifications

Parameters and characteristics for this part

Specification	336503-14-0150

1st Connector	U.FL (UMCC), AMC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MCX Socket
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type [diameter]	1.37 mm
Color	Black
Length [x]	150 mm
Length [x]	5.906 "
Overall Impedance	50 Ohms
Style	AMC to MCX, U.FL (UMCC)

Part	Features	2nd Connector	2nd Connector Mounting Type	2nd Contact Gender	Cable Impedance	1st Contact Gender	Style	2nd Connector Mounting Feature	1st Connector	Overall Impedance	Cable Type	1st Connector Mounting Type	Color	Length [x]	Length [x]	Cable Type [diameter]	Length	Length
Amphenol RF 336503-08-0100	Shielded	MCX Socket	Panel Mount	Female	50 Ohms	Female	AMC to MCX U.FL (UMCC)	Bulkhead - Front Side Nut	U.FL (UMCC) AMC Plug Right Angle	50 Ohms	RG-178	Free Hanging (In-Line)	Copper	0.1 m	3.937 in
Amphenol RF 336503-08-0050	Shielded	MCX Socket	Panel Mount	Female	50 Ohms	Female	AMC to MCX U.FL (UMCC)	Bulkhead - Front Side Nut	U.FL (UMCC) AMC Plug Right Angle	50 Ohms	RG-178	Free Hanging (In-Line)	Copper	50 mm	1.969 in
Amphenol RF 336503-14-0150		MCX Socket	Panel Mount	Female		Female	AMC to MCX U.FL (UMCC)	Bulkhead - Front Side Nut	U.FL (UMCC) AMC Plug Right Angle	50 Ohms		Free Hanging (In-Line)	Black	150 mm	5.906 "	1.37 mm
Amphenol RF 336503-14-0300		MCX Socket	Panel Mount	Female		Female	AMC to MCX U.FL (UMCC)	Bulkhead - Front Side Nut	U.FL (UMCC) AMC Plug Right Angle	50 Ohms		Free Hanging (In-Line)	Black	300 mm	11.811 in	1.37 mm
Amphenol RF 336503-13-0200		MCX Socket	Panel Mount	Female		Female	AMC to MCX U.FL (UMCC)	Bulkhead - Front Side Nut	U.FL (UMCC) AMC Plug Right Angle	50 Ohms	1.32mm OD Coaxial Cable	Free Hanging (In-Line)					7.874 in	200 mm
Amphenol RF 336503-13-0050		MCX Socket	Panel Mount	Female		Female	AMC to MCX U.FL (UMCC)	Bulkhead - Front Side Nut	U.FL (UMCC) AMC Plug Right Angle	50 Ohms	1.32mm OD Coaxial Cable	Free Hanging (In-Line)		50 mm	1.969 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

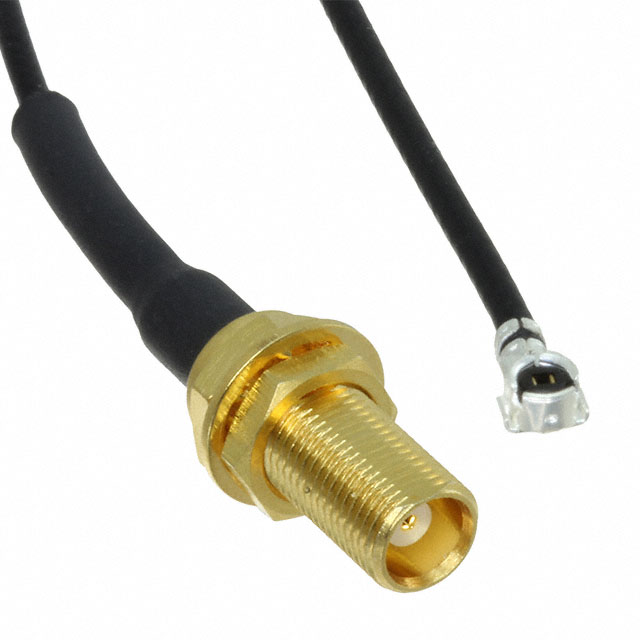

Cable Assembly Coaxial U.FL (UMCC), AMC to MCX 1.37mm OD Coaxial Cable 5.906" (150.00mm)
