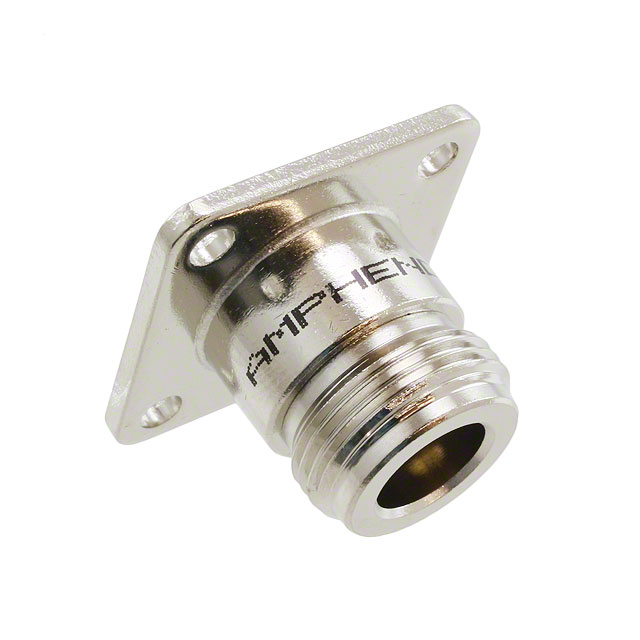

082-6101-RFX

Active

Amphenol RF

CONN TYPE N 0HZ TO 11GHZ 50OHM SOLDER ST FLANGE MOUNT F GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN TYPE N 0HZ TO 11GHZ 50OHM SOLDER ST FLANGE MOUNT F GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	082-6101-RFX

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

Part	Center Contact Material	Mating Cycles	Impedance	Contact Termination	Insertion Loss	Housing Color	Mounting Feature	Connector Style	Body Finish	Number of Ports	Shield Termination	Frequency - Max [Max]	Voltage Rating	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Dielectric Material	Connector Type
Amphenol RF 082-6101-RFX	Phosphor Bronze	500	50 Ohms	Solder	0.15 dB	Silver	Flange	N Type	Nickel	1	Solder	11 GHz	1500 V	Gold	-65 ░C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
