WP59SURKSGW

Active

Kingbright

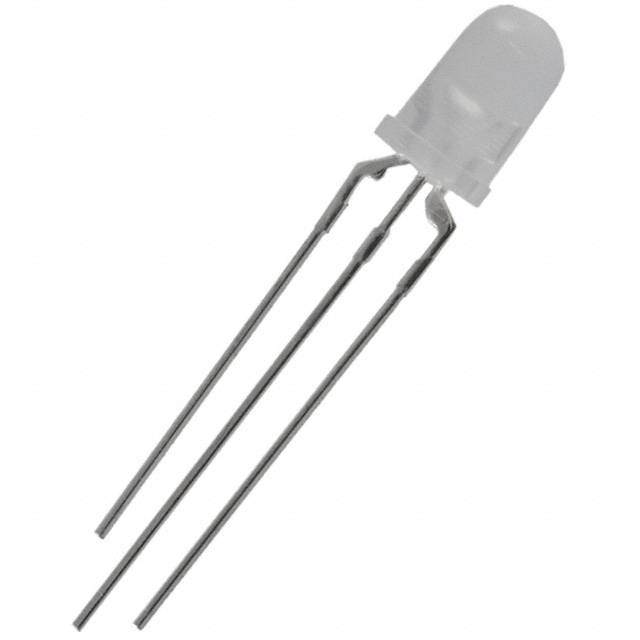

LED GRN/RED DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP59SURKSGW

Active

Kingbright

LED GRN/RED DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.61
		10	$ 0.36
		100	$ 0.23
		500	$ 0.18
		1000	$ 0.17
		2000	$ 0.16
		5000	$ 0.14
		10000	$ 0.13
		25000	$ 0.13

Description

General part information

WP59 Series

Green, Red 568nm Green, 630nm Red LED Indication - Discrete 2.2V Green, 1.95V Red Radial - 3 Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WP59SURKSGW	WP59 Series

Color	Red, Green	Yellow, Red, Green
Configuration	Common Cathode	Common Cathode, Single, Common Anode
Current	-	20 - 30 mA
Current	-	30 mA
Current	-	30 mA
Current - Test	20 mA, 20 mA	20 mA
Current - Test	-	20mA Red, 20mA Yellow
Height (Max) [Max] [z]	11.35 mm	11.35 mm
Lens Color	White	Colorless, White
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Clear, Diffused
Lens Type	-	Diffused, White
Millicandela Rating	60 mcd, 1200 mcd	40 - 1200 mcd
Millicandela Rating	-	8 - 120 mcd
Millicandela Rating	-	6 - 100 mcd
Millicandela Rating	-	40 - 80 mcd
Millicandela Rating	-	40mcd Red, 60mcd Green
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Package / Case	Radial - 3 Leads	Radial - 3 Leads
Size / Dimension [diameter]	5 mm	5 mm
Supplier Device Package	T-1 3/4	T-1 3/4
Viewing Angle	60 °	24 - 60 °
Voltage - Forward (Vf) (Typ)	2.2 V, 1.95 V	1.95 - 2.2 V
Voltage - Forward (Vf) (Typ)	-	2.1 V
Voltage - Forward (Vf) (Typ)	-	1.95 V
Voltage Rating	-	2 - 2.2 V
Voltage Rating	-	2.1V Yellow, 2V Red
Wavelength - Dominant	630 nm, 568 nm	568 - 630 nm
Wavelength - Dominant	-	588 - 617 nm
Wavelength - Peak	-	565 - 645 nm
Wavelength - Peak	-	565 - 627 nm
Wavelength - Peak	-	565 - 627 nm
Wavelength - Peak [custom]	650 nm	650 nm
Wavelength - Peak [custom]	565 nm	565 nm

WP59 Series

LED BI-COLOR HI-EFF. RED/YELLOW 627NM/590NM 3-PIN T-1 3/4 BULK

Part	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Style	Lens Transparency	Millicandela Rating	Lens Size	Lens Size	Package / Case	Height (Max) [Max] [z]	Color	Size / Dimension [diameter]	Supplier Device Package	Lens Color	Wavelength - Peak	Current - Test	Configuration	Wavelength - Dominant [custom]	Viewing Angle	Wavelength - Dominant	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Current	Lens Type	Voltage Rating	Wavelength - Peak [custom]	Current [custom]	Current [custom]	Voltage Rating	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]
Kingbright WP59EYC	2 V, 2.1 V	Through Hole	Round with Domed Top	Clear	80 mcd, 100 mcd	T-1 3/4	5 mm	Radial - 3 Leads	11.35 mm	Red, Yellow	5 mm	T-1 3/4	Colorless	590 nm, 627 nm	20mA Red, 20mA Yellow	Common Cathode	588 nm, 617 nm	24 °
Kingbright WP59EGC	2 V, 2.2 V	Through Hole	Round with Domed Top	Clear		T-1 3/4	5 mm	Radial - 3 Leads	11.35 mm	Green, Red	5 mm	T-1 3/4	Colorless	565 nm, 627 nm		Common Cathode		24 °	568 nm, 617 nm	120 mcd	100 mcd	20 mA, 20 mA
Kingbright WP59BL/GYW		Through Hole, Right Angle	Round with Domed Top		40 mcd, 100 mcd	T-1 3/4	5 mm			Green, Yellow						Single		30 °					25 mA, 30 mA	Diffused, White	2.1 V, 2.2 V	565 nm, 590 nm
Kingbright WP59BL/EYW		Through Hole, Right Angle	Round with Domed Top		40 mcd, 40 mcd	T-1 3/4	5 mm			Red, Yellow						Single		60 °						Diffused, White		590 nm, 627 nm	30 mA	30 mA	2.1V Yellow, 2V Red
Kingbright WP59SURKSGW	1.95 V, 2.2 V	Through Hole	Round with Domed Top	Diffused	60 mcd, 1200 mcd	T-1 3/4	5 mm	Radial - 3 Leads	11.35 mm	Green, Red	5 mm	T-1 3/4	White			Common Cathode		60 °	568 nm, 630 nm			20 mA, 20 mA								650 nm	565 nm
Kingbright WP59EYW	2 V, 2.1 V	Through Hole	Round with Domed Top	Diffused	40 mcd, 40 mcd	T-1 3/4	5 mm	Radial - 3 Leads	11.35 mm	Red, Yellow	5 mm	T-1 3/4	White	590 nm, 627 nm	20mA Red, 20mA Yellow	Common Cathode	588 nm, 617 nm	60 °
Kingbright WP59SURKCGKW		Through Hole	Round with Domed Top	Diffused	180 mcd, 200 mcd	T-1 3/4	5 mm	Radial - 3 Leads	11.35 mm	Green, Red	5 mm	T-1 3/4	White	574 nm, 645 nm		Common Cathode		30 °	570 nm, 630 nm			20 mA, 20 mA										2.1 V	1.95 V
Kingbright WP59CB/GYW		Through Hole	Round with Domed Top		40 mcd, 100 mcd	T-1 3/4	5 mm			Green, Yellow						Single		60 °					25 mA, 30 mA	Diffused, White	2.1 V, 2.2 V	565 nm, 590 nm
Kingbright WP59GYC	2.1 V, 2.2 V	Through Hole	Round with Domed Top	Clear		T-1 3/4	5 mm	Radial - 3 Leads	11.35 mm	Green, Yellow	5 mm	T-1 3/4	Colorless	565 nm, 590 nm		Common Cathode		24 °	568 nm, 588 nm	120 mcd		20 mA, 20 mA												80 mcd
Kingbright WP59EGW/CA	2 V, 2.2 V	Through Hole	Round with Domed Top	Diffused		T-1 3/4	5 mm	Radial - 3 Leads	11.35 mm	Green, Red	5 mm	T-1 3/4	White	565 nm, 627 nm		Common Anode		60 °	568 nm, 625 nm	8 mcd	6 mcd	20 mA, 20 mA
