WB24GD1100

Active

E-Switch

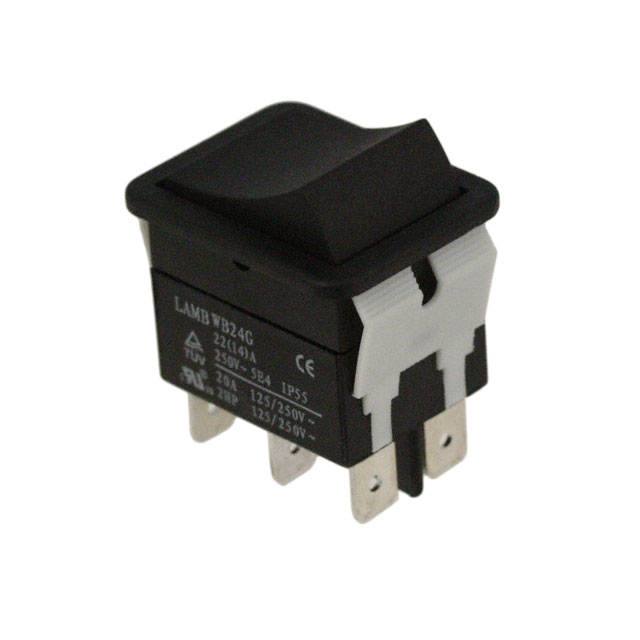

SWITCH ROCKER DPDT 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPDT 20A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WB24GD1100	WB24GD1 Series

Actuator Marking	No Marking	O -, No Marking
Actuator Type	Concave (Curved)	Concave (Curved)
Approval Agency	CE, TUV, cULus	CE, TUV, cULus
Circuit	DPDT	DPDT
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	20 A	20 A
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30 mm	30 mm
Panel Cutout Dimensions [y]	22 mm	22 mm
Switch Function	On-On	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER DPDT 20A 125V

Part	Current Rating (Amps)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Actuator Type	Mounting Type	Color - Actuator/Cap	Actuator Marking	Termination Style	Approval Agency	Voltage Rating - AC	Ingress Protection	Circuit
E-Switch WB24GD1121	20 A	30 mm	22 mm	On-On	Concave (Curved)	Panel Mount, Snap-In	Black	O -	Quick Connect - 0.250" (6.3mm)	CE, cULus, TUV	125 V	IP55 - Dust Protected, Water Resistant	DPDT
E-Switch WB24GD1100	20 A	30 mm	22 mm	On-On	Concave (Curved)	Panel Mount, Snap-In	Black	No Marking	Quick Connect - 0.250" (6.3mm)	CE, cULus, TUV	125 V	IP55 - Dust Protected, Water Resistant	DPDT
