2903289

Active

Phoenix Contact

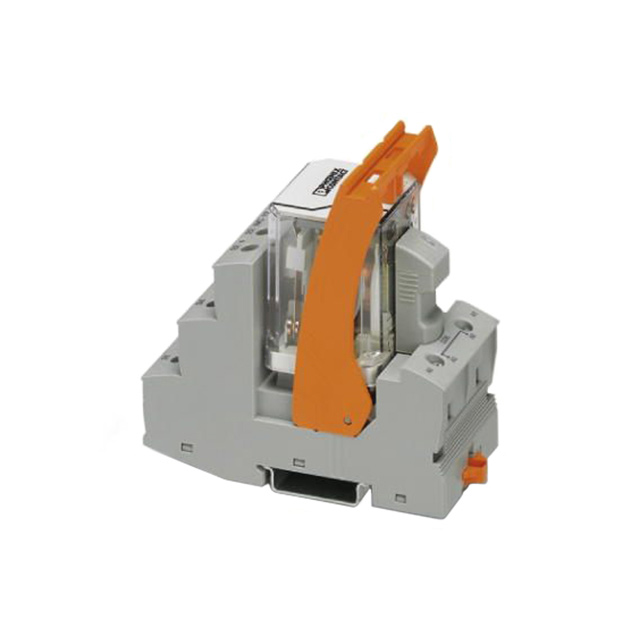

RELAY GEN PURPOSE DPDT 9A 230V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2903289

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 9A 230V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

29032 Series

General Purpose Relay DPDT (2 Form C) 230VAC Coil DIN Rail

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2903289	29032 Series

Approval Agency	CSA	CSA
Coil Current	14 mA	13 - 70 mA
Coil Resistance	16.43 kOhms	5 - 429 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	230 VAC	24 - 230 VDC
Contact Form	DPDT (2 Form C)	3PST-NO (3 Form A), 3PDT (3 Form C), DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	9 A	6 - 11 A
Features	Lighted Indicator, Varistor, Socket Included	Socket Included, Diode, Lighted Indicator, Varistor
Load - Max Switching	2250 W, 3960 VA	2250 - 4840 W
Mounting Type	DIN Rail	DIN Rail
Operate Time	25 ms	15 - 25 ms
Operating Temperature [Max]	40 °C	40 - 60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	20 ms
Switching Voltage	-	250 VAC
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal

29032 Series

RELAY GEN PURPOSE 3PST 10A 24V

Part	Relay Type	Contact Rating (Current)	Mounting Type	Coil Resistance	Release Time	Termination Style	Contact Form	Contact Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Coil Type	Operate Time	Approval Agency	Coil Voltage	Switching Voltage	Load - Max Switching
Phoenix Contact 2903284	General Purpose	10 A	DIN Rail	343 Ohms	20 ms	Screw Terminal	3PST-NO (3 Form A)	Silver Nickel (AgNi)	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	70 mA	Non Latching	20 ms	CSA	24 VDC
Phoenix Contact 2903293	General Purpose	6 A	DIN Rail	5.22 kOhms	20 ms	Spring Terminal	3PDT (3 Form C)	Silver Nickel (AgNi)	Lighted Indicator, Socket Included, Varistor	-40 °C	50 °C	23 mA	Non Latching	15 ms	CSA	120 VAC	250 VAC, 250 VDC
Phoenix Contact 2903297	General Purpose	10 A	DIN Rail	400 Ohms	20 ms	Spring Terminal	DPDT (2 Form C)	Silver Nickel (AgNi)	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	60 mA	Non Latching	18 ms	CSA	24 VDC	250 VAC, 250 VDC
Phoenix Contact 2903287	General Purpose	8 A	DIN Rail	5 kOhms	20 ms	Screw Terminal	3PDT (3 Form C)	Silver Nickel (AgNi)	Lighted Indicator, Socket Included, Varistor	-40 °C	40 °C	24 mA	Non Latching	25 ms	CSA	120 VAC
Phoenix Contact 2903274	General Purpose	8 A	DIN Rail	5 kOhms	20 ms	Spring Terminal	3PST-NO (3 Form A)	Silver Nickel (AgNi)	Lighted Indicator, Socket Included, Varistor	-40 °C	40 °C	24 mA	Non Latching	25 ms	CSA	120 VAC
Phoenix Contact 2903290	General Purpose	9 A	DIN Rail	5 kOhms	20 ms	Screw Terminal	DPDT (2 Form C)	Silver Nickel (AgNi)	Lighted Indicator, Socket Included, Varistor	-40 °C	40 °C	24 mA	Non Latching	25 ms	CSA	120 VAC		2250 W, 3960 VA
Phoenix Contact 2903292	General Purpose	6 A	DIN Rail	17.69 kOhms	20 ms	Spring Terminal	3PDT (3 Form C)	Silver Nickel (AgNi)	Lighted Indicator, Socket Included, Varistor	-40 °C	50 °C	13 mA	Non Latching	15 ms	CSA	230 VAC	250 VAC, 250 VDC
Phoenix Contact 2903288	General Purpose	10 A	DIN Rail	429 Ohms	20 ms	Screw Terminal	3PDT (3 Form C)	Silver Nickel (AgNi)	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	56 mA	Non Latching	20 ms	CSA	24 VDC
Phoenix Contact 2903294	General Purpose	8.5 A	DIN Rail	400 Ohms	20 ms	Spring Terminal	3PDT (3 Form C)	Silver Nickel (AgNi)	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	60 mA	Non Latching	18 ms	CSA	24 VDC	250 VAC, 250 VDC
Phoenix Contact 2903291	General Purpose	11 A	DIN Rail	429 Ohms	20 ms	Screw Terminal	DPDT (2 Form C)	Silver Nickel (AgNi)	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	56 mA	Non Latching	20 ms	CSA	24 VDC		2750 W, 4840 VA
