Phoenix Contact

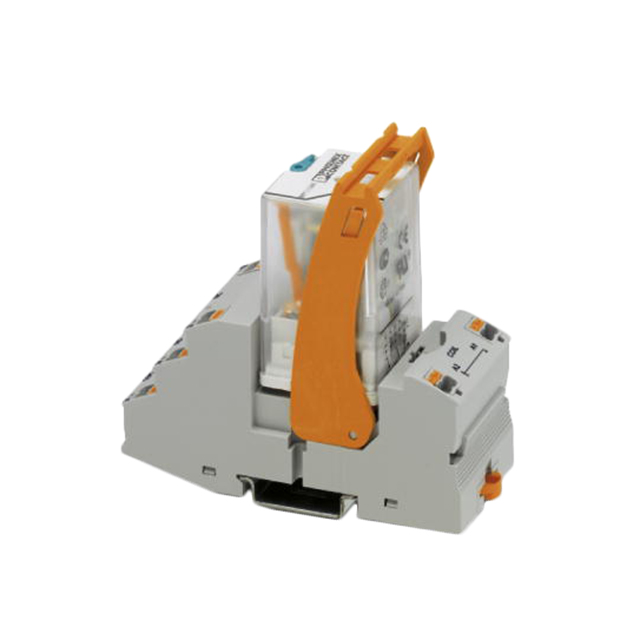

GENERAL PURPOSE RELAY, RIF-3 SERIES, INTERFACE, NON LATCHING, DPDT, 24 VDC, 10 A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Technical Data Sheet EN

2903297

Active

Phoenix Contact

GENERAL PURPOSE RELAY, RIF-3 SERIES, INTERFACE, NON LATCHING, DPDT, 24 VDC, 10 A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 18.42
		10	$ 16.91
		25	$ 15.72
		50	$ 14.69
		100	$ 13.58
		250	$ 12.47

Description

General part information

29032 Series

General Purpose Relay DPDT (2 Form C) 24VDC Coil DIN Rail

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Technical Data Sheet EN

Datasheet

Specification	2903297	29032 Series

Approval Agency	CSA	CSA
Coil Current	60 mA	13 - 70 mA
Coil Resistance	400 Ohms	5 - 429 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 - 230 VDC
Contact Form	DPDT (2 Form C)	3PST-NO (3 Form A), 3PDT (3 Form C), DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	10 A	6 - 11 A
Features	Socket Included, Diode, Lighted Indicator	Socket Included, Diode, Lighted Indicator, Varistor
Load - Max Switching	-	2250 - 4840 W
Mounting Type	DIN Rail	DIN Rail
Operate Time	18 ms	15 - 25 ms
Operating Temperature [Max]	60 °C	40 - 60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	20 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Spring Terminal	Screw Terminal, Spring Terminal

Part	Relay Type	Contact Rating (Current)	Mounting Type	Coil Resistance	Release Time	Termination Style	Contact Form	Contact Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Coil Type	Operate Time	Approval Agency	Coil Voltage	Switching Voltage	Load - Max Switching
Phoenix Contact 2903284	General Purpose	10 A	DIN Rail	343 Ohms	20 ms	Screw Terminal	3PST-NO (3 Form A)	Silver Nickel (AgNi)	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	70 mA	Non Latching	20 ms	CSA	24 VDC
Phoenix Contact 2903293	General Purpose	6 A	DIN Rail	5.22 kOhms	20 ms	Spring Terminal	3PDT (3 Form C)	Silver Nickel (AgNi)	Lighted Indicator, Socket Included, Varistor	-40 °C	50 °C	23 mA	Non Latching	15 ms	CSA	120 VAC	250 VAC, 250 VDC
Phoenix Contact 2903297	General Purpose	10 A	DIN Rail	400 Ohms	20 ms	Spring Terminal	DPDT (2 Form C)	Silver Nickel (AgNi)	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	60 mA	Non Latching	18 ms	CSA	24 VDC	250 VAC, 250 VDC
Phoenix Contact 2903287	General Purpose	8 A	DIN Rail	5 kOhms	20 ms	Screw Terminal	3PDT (3 Form C)	Silver Nickel (AgNi)	Lighted Indicator, Socket Included, Varistor	-40 °C	40 °C	24 mA	Non Latching	25 ms	CSA	120 VAC
Phoenix Contact 2903274	General Purpose	8 A	DIN Rail	5 kOhms	20 ms	Spring Terminal	3PST-NO (3 Form A)	Silver Nickel (AgNi)	Lighted Indicator, Socket Included, Varistor	-40 °C	40 °C	24 mA	Non Latching	25 ms	CSA	120 VAC
Phoenix Contact 2903290	General Purpose	9 A	DIN Rail	5 kOhms	20 ms	Screw Terminal	DPDT (2 Form C)	Silver Nickel (AgNi)	Lighted Indicator, Socket Included, Varistor	-40 °C	40 °C	24 mA	Non Latching	25 ms	CSA	120 VAC		2250 W, 3960 VA
Phoenix Contact 2903292	General Purpose	6 A	DIN Rail	17.69 kOhms	20 ms	Spring Terminal	3PDT (3 Form C)	Silver Nickel (AgNi)	Lighted Indicator, Socket Included, Varistor	-40 °C	50 °C	13 mA	Non Latching	15 ms	CSA	230 VAC	250 VAC, 250 VDC
Phoenix Contact 2903288	General Purpose	10 A	DIN Rail	429 Ohms	20 ms	Screw Terminal	3PDT (3 Form C)	Silver Nickel (AgNi)	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	56 mA	Non Latching	20 ms	CSA	24 VDC
Phoenix Contact 2903294	General Purpose	8.5 A	DIN Rail	400 Ohms	20 ms	Spring Terminal	3PDT (3 Form C)	Silver Nickel (AgNi)	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	60 mA	Non Latching	18 ms	CSA	24 VDC	250 VAC, 250 VDC
Phoenix Contact 2903291	General Purpose	11 A	DIN Rail	429 Ohms	20 ms	Screw Terminal	DPDT (2 Form C)	Silver Nickel (AgNi)	Diode, Lighted Indicator, Socket Included	-40 °C	60 °C	56 mA	Non Latching	20 ms	CSA	24 VDC		2750 W, 4840 VA

Part

Relay Type

Contact Rating (Current)

Mounting Type

Coil Resistance

Release Time

Termination Style

Contact Form

Contact Material

Features

Operating Temperature [Min]

Operating Temperature [Max]

Coil Current

Coil Type

Operate Time

Approval Agency

Coil Voltage

Switching Voltage

Load - Max Switching

Phoenix Contact

2903284

General Purpose

10 A

DIN Rail

343 Ohms

20 ms

Screw Terminal

3PST-NO (3 Form A)

Silver Nickel (AgNi)

Diode, Lighted Indicator, Socket Included

-40 °C

60 °C

70 mA

Non Latching

20 ms

CSA

24 VDC

Phoenix Contact

2903293

General Purpose

6 A

DIN Rail

5.22 kOhms

20 ms

Spring Terminal

3PDT (3 Form C)

Silver Nickel (AgNi)

Lighted Indicator, Socket Included, Varistor

-40 °C

50 °C

23 mA

Non Latching

15 ms

CSA

120 VAC

250 VAC, 250 VDC

Phoenix Contact

2903297

General Purpose

10 A

DIN Rail

400 Ohms

20 ms

Spring Terminal

DPDT (2 Form C)

Silver Nickel (AgNi)

Diode, Lighted Indicator, Socket Included

-40 °C

60 °C

60 mA

Non Latching

18 ms

CSA

24 VDC

250 VAC, 250 VDC

Phoenix Contact

2903287

General Purpose

8 A

DIN Rail

5 kOhms

20 ms

Screw Terminal

3PDT (3 Form C)

Silver Nickel (AgNi)

Lighted Indicator, Socket Included, Varistor

-40 °C

40 °C

24 mA

Non Latching

25 ms

CSA

120 VAC

Phoenix Contact

2903274

General Purpose

8 A

DIN Rail

5 kOhms

20 ms

Spring Terminal

3PST-NO (3 Form A)

Silver Nickel (AgNi)

Lighted Indicator, Socket Included, Varistor

-40 °C

40 °C

24 mA

Non Latching

25 ms

CSA

120 VAC

Phoenix Contact

2903290

General Purpose

9 A

DIN Rail

5 kOhms

20 ms

Screw Terminal

DPDT (2 Form C)

Silver Nickel (AgNi)

Lighted Indicator, Socket Included, Varistor

-40 °C

40 °C

24 mA

Non Latching

25 ms

CSA

120 VAC

2250 W, 3960 VA

Phoenix Contact

2903292

General Purpose

6 A

DIN Rail

17.69 kOhms

20 ms

Spring Terminal

3PDT (3 Form C)

Silver Nickel (AgNi)

Lighted Indicator, Socket Included, Varistor

-40 °C

50 °C

13 mA

Non Latching

15 ms

CSA

230 VAC

250 VAC, 250 VDC

Phoenix Contact

2903288

General Purpose

10 A

DIN Rail

429 Ohms

20 ms

Screw Terminal

3PDT (3 Form C)

Silver Nickel (AgNi)

Diode, Lighted Indicator, Socket Included

-40 °C

60 °C

56 mA

Non Latching

20 ms

CSA

24 VDC

Phoenix Contact

2903294

General Purpose

8.5 A

DIN Rail

400 Ohms

20 ms

Spring Terminal

3PDT (3 Form C)

Silver Nickel (AgNi)

Diode, Lighted Indicator, Socket Included

-40 °C

60 °C

60 mA

Non Latching

18 ms

CSA

24 VDC

250 VAC, 250 VDC

Phoenix Contact

2903291

General Purpose

11 A

DIN Rail

429 Ohms

20 ms

Screw Terminal

DPDT (2 Form C)

Silver Nickel (AgNi)

Diode, Lighted Indicator, Socket Included

-40 °C

60 °C

56 mA

Non Latching

20 ms

CSA

24 VDC

2750 W, 4840 VA
