MNI-10-8
ActiveEssentra Access Solutions

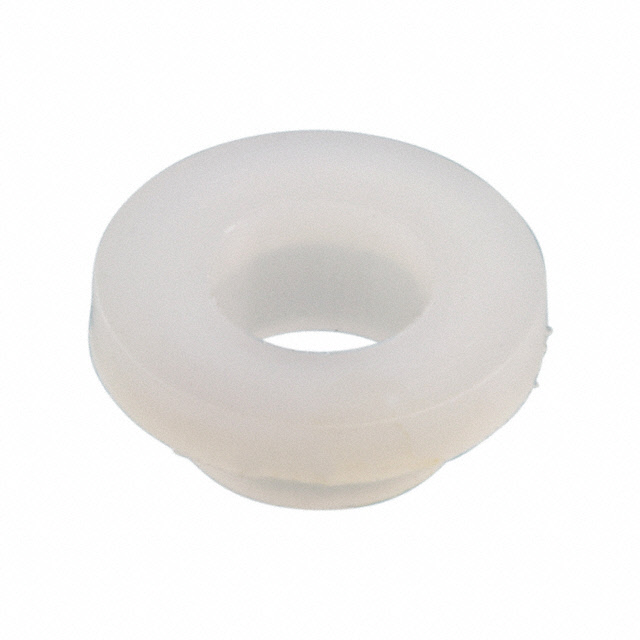

WASHER SHOULDER #10 NYLON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MNI-10-8
ActiveEssentra Access Solutions
WASHER SHOULDER #10 NYLON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MNI-10-8 |
|---|---|
| Diameter - Inside [diameter] | 5.08 mm |
| Diameter - Inside [diameter] | 0.2 in |
| Diameter - Outside [diameter] | 0.399 " |
| Diameter - Outside [diameter] | 10.13 mm |
| Diameter - Shoulder [diameter] | 6.6 mm |
| Diameter - Shoulder [diameter] | 0.26 in |
| Length - Below Head | 0.125 in |
| Length - Below Head | 3.18 mm |
| Length - Below Head | 0.125 in |
| Material | Nylon |
| Thickness - Overall | 0.188 in |
| Thickness - Overall | 0.1875 " |
| Thickness - Overall | 4.75 mm |
| Thread/Screw/Hole Size | #10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.29 | |
| 5 | $ 0.24 | |||
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.15 | |||
Description
General part information
MNI-10 Series
#10 Shoulder Washer 0.188" (4.75mm) 3/16" Thick Nylon
