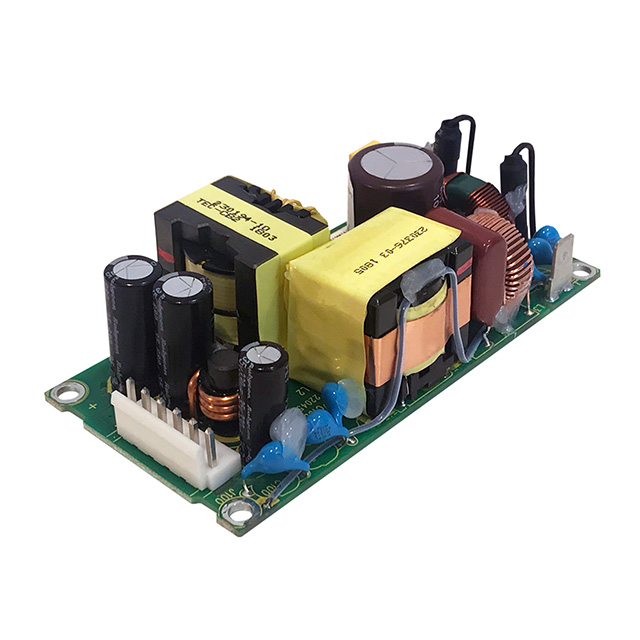

CUS100ME-18

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, HOUSEHOLD & MEDICAL, 1 OUTPUT, 100W, 100 W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

CUS100ME-18

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, HOUSEHOLD & MEDICAL, 1 OUTPUT, 100W, 100 W

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CUS100ME-18

Applications	Household Appliances, ITE (Commercial), Medical
Current - Output 1	5.55 A
Efficiency	94 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	100 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	31.5 mm
Size / Dimension [z]	1.24 "
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	18 V

CUS100ME Series

Part	Features	Type	Voltage - Isolation	Power (Watts)	Mounting Type	Voltage - Output 1	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Number of Outputs	Current - Output 1
TDK-LAMBDA CUS100ME-18	Universal Input	Open Frame	4000 V	100 W	Chassis Mount	18 V	Household Appliances ITE (Commercial) Medical	4 in	31.5 mm	1.24 "	50.8 mm	2 in	101.6 mm	94 %	1	5.55 A
TDK-LAMBDA CUS100ME-18/U	Universal Input	Open Frame	4000 V	100 W	Chassis Mount	18 V	Household Appliances ITE (Commercial) Medical	4.57 "	39.7 mm	1.57 "	64 mm	2.52 "	116 mm	94 %	1	5.55 A
TDK-LAMBDA CUS100ME-12/A	Universal Input	Enclosed	4000 V	100 W	Chassis Mount	12 V	Household Appliances ITE (Commercial) Medical	4.57 "	38.5 mm	1.52 in	64 mm	2.52 "	116 mm	94 %	1	8.33 A
TDK-LAMBDA CUS100ME-28	Universal Input	Open Frame	4000 V	100 W	Chassis Mount	28 V	Household Appliances ITE (Commercial) Medical	4 in	31.5 mm	1.24 "	50.8 mm	2 in	101.6 mm	94 %	1	3.57 A
TDK-LAMBDA CUS100ME-12/U	Universal Input	Open Frame	4000 V	100 W	Chassis Mount	12 V	Household Appliances ITE (Commercial) Medical	4.57 "	39.7 mm	1.57 "	64 mm	2.52 "	116 mm	94 %	1	8.33 A
TDK-LAMBDA CUS100ME-24/B	Baseplate Universal Input	Open Frame	4000 V	100 W	Chassis Mount	24 V	Household Appliances ITE (Commercial) Medical	4.57 "	34.2 mm	1.35 "	59.4 mm	2.34 "	116 mm	94 %	1	4.16 A
TDK-LAMBDA CUS100ME-48/A	Universal Input	Enclosed	4000 V	100 W	Chassis Mount	48 V	Household Appliances ITE (Commercial) Medical	4.57 "	38.5 mm	1.52 in	64 mm	2.52 "	116 mm	94 %	1	2.08 A
TDK-LAMBDA CUS100ME-18/A	Universal Input	Enclosed	4000 V	100 W	Chassis Mount	18 V	Household Appliances ITE (Commercial) Medical	4.57 "	38.5 mm	1.52 in	64 mm	2.52 "	116 mm	94 %	1	5.55 A
TDK-LAMBDA CUS100ME-36/A	Universal Input	Enclosed	4000 V	100 W	Chassis Mount	36 V	Household Appliances ITE (Commercial) Medical	4.57 "	38.5 mm	1.52 in	64 mm	2.52 "	116 mm	94 %	1	2.77 A
TDK-LAMBDA CUS100ME-24/U	Universal Input	Open Frame	4000 V	100 W	Chassis Mount	24 V	Household Appliances ITE (Commercial) Medical	4.57 "	39.7 mm	1.57 "	64 mm	2.52 "	116 mm	94 %	1	4.16 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.33
		25	$ 54.28
		50	$ 53.17
Newark	Each	1	$ 55.33
		25	$ 54.28
		50	$ 53.17

Description

General part information

CUS100ME Series

Open Frame AC DC Converters 1 Output 18V 85 ~ 264 VAC Input
