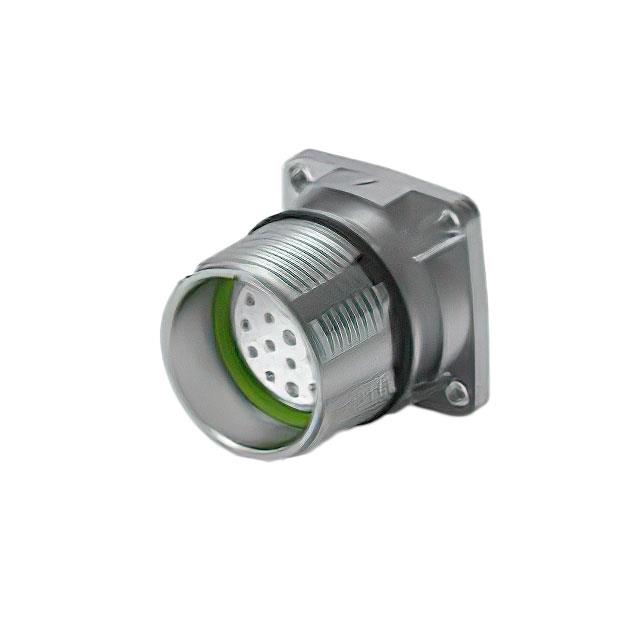

AEA378N00000101000

Active

TE Intercontec

CONN RCPT HSG MALE 19POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 19POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	AEA378N00000101000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Ingress Protection	IP66/IP67
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-19
Shielding	Unshielded
Type	For Male Pins

Part	Insert Material	Shell Finish	Housing Color	Orientation	Material Flammability Rating	Includes	Shielding	Fastening Type	Type	Mounting Feature	Shell Material	Ingress Protection	Connector Type	Number of Positions	Note	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Shell Size - Insert
TE Intercontec AEA378N00000201000	Polybutylene Terephthalate (PBT)	Nickel	Silver	Keyed	UL94 V-0	1 Connector 1 O-Ring	Unshielded	Push-Twist	For Male Pins	Flange	Zinc Die Cast	IP66/IP67	Receptacle Housing	19	Contacts Not Included	-20 C	130 °C	Circular	M23-19
TE Intercontec AEA378N00000101000		Nickel	Silver	Keyed	UL94 V-0		Unshielded	Push-Twist	For Male Pins		Zinc Die Cast	IP66/IP67	Receptacle Housing	19	Contacts Not Included	-20 C	130 °C	Circular	M23-19

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle Housing Panel Mount
