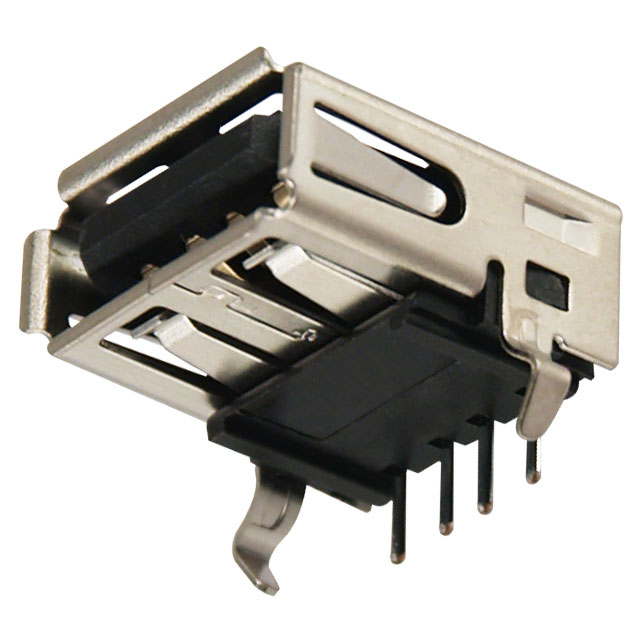

KUSBX-AS1N-B30

Active

Kycon, Inc.

CONN RCPT USB TYPE A R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG3LX-188S1-FF-GY1 Datasheet

KUSBX-AS1N-B30

Active

Kycon, Inc.

CONN RCPT USB TYPE A R/A

Deep-Dive with AI

DocumentsG3LX-188S1-FF-GY1 Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.93
		10	$ 0.79
		25	$ 0.74
		50	$ 0.70
		100	$ 0.67
		300	$ 0.62
		500	$ 0.60
		1000	$ 0.57
		2500	$ 0.53

Description

General part information

KUSBX Series

USB Connectors B TYPE RECEPTACLE WHITE 30u GOLD

Documents

Technical documentation and resources

G3LX-188S1-FF-GY1

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KUSBX-AS1N-B30	KUSBX Series

Connector Type	USB-A (USB TYPE-A)	USB-A (USB TYPE-A), USB-C (USB TYPE-C), USB-B, Stacked
Contact Finish	Gold	Gold
Current Rating (Amps)	1.5 A	0.25 - 6.25 A
Features	-	Solder Retention, Board Guide
Gender	Receptacle	Receptacle, Plug
Insulation Color	Black	White, Black, Orange, Blue
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	1500	1500 - 10000
Mounting Feature	Horizontal	Horizontal, Vertical, Flag
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Surface Mount, Right Angle, Through Hole
Number of Contacts	-	8 - 24
Number of Contacts [custom]	4	4
Number of Ports	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-55 - -30 °C
Shell/Shielding Material	Copper Alloy	Copper Alloy, Stainless, Steel, Brass
Shielding	Shielded	Shielded, Unshielded
Specifications	-	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 VAC

KUSBX Series

USB Connectors B TYPE RECEPTACLE WHITE 30u GOLD

Part	Contact Finish	Number of Ports	Mounting Feature	Connector Type	Termination	Mating Cycles	Gender	Current Rating (Amps)	Material Flammability Rating	Insulation Color	Voltage - Rated	Mounting Type	Shielding	Shell/Shielding Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts [custom]	Number of Contacts	Specifications	Features
Kycon, Inc. KUSBX-AS1N-W	Gold	1	Horizontal	USB-A (USB TYPE-A)	Solder	1500	Receptacle	1.5 A	UL94 V-0	White	30 VAC	Through Hole, Right Angle	Shielded	Copper Alloy	85 °C	-40 °C	4
Kycon, Inc. KUSBX-SL2-CS1N24-B-TR	Gold	1	Flag, Vertical	USB-C (USB TYPE-C)	Solder	10000	Receptacle	0.25 A, 1.25 A, 5 A	UL94 V-0	Black	30 V	Through Hole, Right Angle	Shielded	Stainless, Steel	85 °C	-30 ░C		24	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Kycon, Inc. KUSBXHT-SLAS1N-O-HRF	Gold	1	Horizontal	USB-A (USB TYPE-A)	Solder	1500	Receptacle	1.5 A	UL94 V-0	Orange	30 V	Through Hole, Right Angle	Shielded	Stainless, Steel	85 °C	-55 °C	4
Kycon, Inc. KUSBX-SMT-BS1N-B30	Gold	1	Horizontal	USB-B	Solder	1500	Receptacle		UL94 V-0	Black	30 VAC	Surface Mount, Right Angle	Shielded	Brass	85 °C	-40 °C	4			Board Guide, Solder Retention
Kycon, Inc. KUSBX-SMTTH-CS1-BTR	Gold	1	Horizontal	USB-C (USB TYPE-C)	Solder	10000	Receptacle	0.25 A, 1.25 A, 5 A, 6.25 A	UL94 V-0	Black		Through Hole, Right Angle	Shielded	Stainless, Steel	85 °C	-30 ░C		24	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Kycon, Inc. KUSBX-AS1N-B30	Gold	1	Horizontal	USB-A (USB TYPE-A)	Solder	1500	Receptacle	1.5 A	UL94 V-0	Black	30 VAC	Through Hole, Right Angle	Shielded	Copper Alloy	85 °C	-40 °C	4
Kycon, Inc. KUSBX-SMT2AP1S-B	Gold	1	Horizontal	USB-A (USB TYPE-A)	Solder		Plug		UL94 V-0	Black	30 VAC	Surface Mount, Right Angle, Through Hole	Shielded	Copper Alloy	85 °C	-55 °C	4
Kycon, Inc. KUSBX-AS1N9-1-BL30	Gold	1	Horizontal	USB-A (USB TYPE-A)	Solder	1500	Receptacle	0.25 A, 1.8 A	UL94 V-0	Blue		Through Hole, Right Angle	Shielded	Brass	85 °C	-55 °C		9
Kycon, Inc. KUSBX-SMT2AP5S-B	Gold	1	Horizontal	USB-A (USB TYPE-A)	Solder		Plug		UL94 V-0	Black	30 VAC	Surface Mount, Right Angle, Through Hole	Shielded	Copper Alloy	85 °C	-55 °C	4
Kycon, Inc. KUSBX-AS2N-B30	Gold	2	Horizontal	Stacked, USB-A (USB TYPE-A)	Solder	1500	Receptacle		UL94 V-0	Black	30 VAC	Through Hole, Right Angle	Shielded	Brass	85 °C	-40 °C		8
