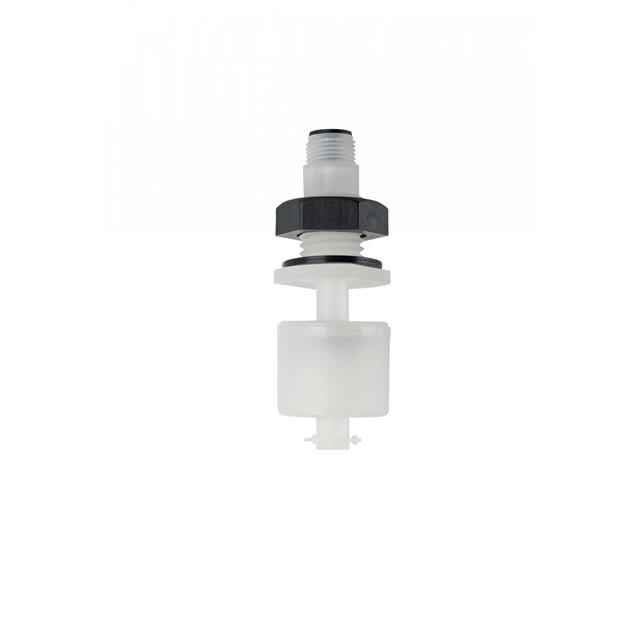

RSF154YFP
ActiveSensata Technologies
SENSOR LEVEL SWITCH SINGLE FLOAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSF154YFP
ActiveSensata Technologies
SENSOR LEVEL SWITCH SINGLE FLOAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSF154YFP |
|---|---|
| Current | 600 mA |
| Material - Housing & Prism | Polypropylene (PP) |
| Minimum Liquid Specific Gravity [Min] | 0.65 |
| Mounting Type | M16x2 Thread, Panel Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | SPST-NO |
| Type | Liquid |
| Voltage Rating | 120 VDC, 240 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.89 | |
| 10 | $ 22.76 | |||
| 50 | $ 21.73 | |||
| 100 | $ 21.11 | |||
Description
General part information
RSF154 Series
Liquid Level Sensor Switch (Single Float) SPST-NO Output Panel Mount, M16x2 Thread
