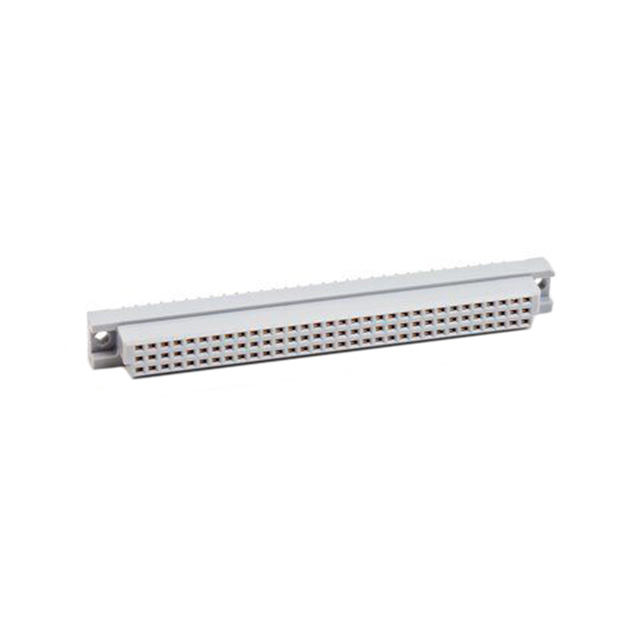

DIN-064CSB-S1L-HM

Active

3M (TC)

80001222498 DIN-064CSB-S1L-HM=DIN/64P/C-SKT/A&C/3.75MMST/10PDNI/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DIN-064CSB-S1L-HM

Active

3M (TC)

80001222498 DIN-064CSB-S1L-HM=DIN/64P/C-SKT/A&C/3.75MMST/10PDNI/ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DIN-064CSB-S1L-HM

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Current Rating (Amps)	3 A
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	96
Number of Positions Loaded	64
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	C
Termination	Solder

DIN-064C Series

Part	Termination	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Number of Positions	Material - Insulation	Mounting Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Style	Number of Positions Loaded	Connector Type	Contact Finish	Material Flammability Rating
3M (TC) DIN-064CSB-S1L-HM	Solder	2.54 mm	0.1 in	3 Áin	0.076 Ám	3 A	96	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole	3	-55 °C	125 °C	C	64	Receptacle Female Sockets	Gold	UL94 V-0
3M (TC) DIN-064CSB-S3L-HM	Solder	2.54 mm	0.1 in	3 Áin	0.076 Ám	3 A	96	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole	3	-55 °C	125 °C	C	64	Receptacle Female Sockets	Gold	UL94 V-0
3M (TC) DIN-064CPB-RR1-HM	Solder	2.54 mm	0.1 in	3 Áin	0.076 Ám	3 A	96	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole Right Angle	3	-55 °C	125 °C	C	64	Male Pins Plug	Gold	UL94 V-0
3M (TC) DIN-064CSB-S1-TR	Solder	2.54 mm	0.1 in	3 Áin	0.076 Ám	3 A	96	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole	3	-55 °C	125 °C	C	64	Receptacle Female Sockets	Gold	UL94 V-0
3M (TC) DIN-064CSB-PS-TG30	Press-Fit	2.54 mm	0.1 in	30 Áin	0.76 Ám	3 A	96	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole	3	-55 °C	125 °C	C	64	Receptacle Female Sockets	Gold	UL94 V-0
3M (TC) DIN-064CPB-SR2-TR	Solder	2.54 mm	0.1 in	3 Áin	0.076 Ám	3 A	96	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole Right Angle	3	-55 °C	125 °C	C	64	Male Pins Plug	Gold	UL94 V-0
3M (TC) DIN-064CSB-PS-KR	Press-Fit	2.54 mm	0.1 in	30 Áin	0.76 Ám	3 A	96	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole	3	-55 °C	125 °C	C	64	Receptacle Female Sockets	Gold	UL94 V-0
3M (TC) DIN-064CSB-PSL-HM	Press-Fit	2.54 mm	0.1 in	3 Áin	0.076 Ám	3 A	96	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole	3	-55 °C	125 °C	C	64	Receptacle Female Sockets	Gold	UL94 V-0
3M (TC) DIN-064CPB-SR14A-HM	Solder	2.54 mm	0.1 in	3 Áin	0.076 Ám	3 A	96	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole Right Angle	3	-55 °C	125 °C	C	64	Male Pins Plug	Gold	UL94 V-0
3M (TC) DIN-064CSB-R1L-TG30	Solder	2.54 mm	0.1 in	30 Áin	0.76 Ám	3 A	96	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Through Hole	3	-55 °C	125 °C	C	64	Receptacle Female Sockets	Gold	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.88
		10	$ 7.99
		25	$ 7.52
		50	$ 7.33
		100	$ 7.14
		250	$ 6.37
		756	$ 5.60
		1512	$ 5.13
Newark	Each	500	$ 7.07
		1000	$ 6.64

Description

General part information

DIN-064C Series

96 Position Din Connector Receptacle, Female Sockets Gold Through Hole
