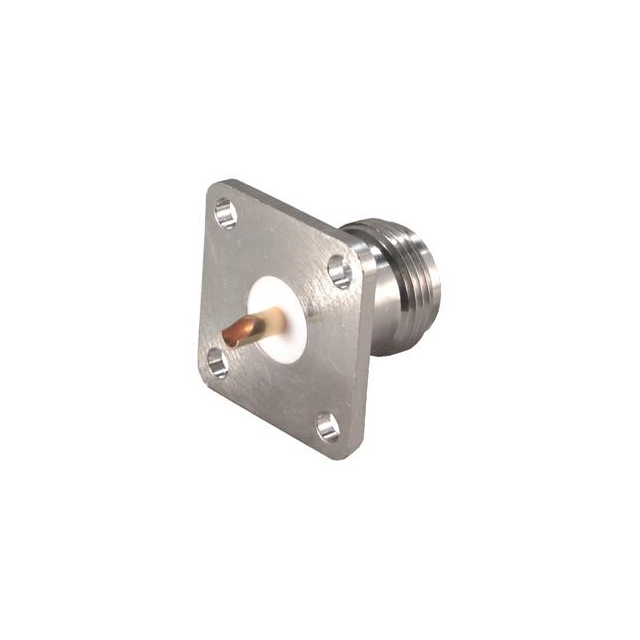

Specification	23_N-50-0-23/133_NE

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Jack, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	1000 V

23_N-50 Series

Part	Center Contact Material	Connector Style	Mounting Type	Number of Ports	Frequency - Max	Housing Color	Fastening Type	Connector Type	Contact Termination	Mounting Feature	Impedance	Shield Termination	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Voltage Rating	Body Finish	Dielectric Material	Body Material	Features
Huber+Suhner, Inc. 23_N-50-0-1/133_NE	Bronze	N Type	Panel Mount	1	11 GHz	Silver	Threaded	Female Socket Jack	Solder Cup	Flange	50 Ohm	Solder	500 cycles	-65 °C	165 °C	Gold	1000 V	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass
Huber+Suhner, Inc. 23_N-50-0-16/133_NE	Beryllium Copper	N Type	Panel Mount	1	11 GHz	Silver	Threaded	Female Socket Jack	Solder Tab	Flange	50 Ohm	Solder	500 cycles	-65 °C	125 °C	Gold	1000 V	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass
Huber+Suhner, Inc. 23_N-50-0-23/133_NE	Beryllium Copper	N Type	Panel Mount	1	11 GHz	Silver	Threaded	Female Socket Jack	Solder Cup	Flange	50 Ohm	Solder	500 cycles	-65 °C	165 °C	Gold	1000 V	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass
Huber+Suhner, Inc. 23_N-50-0-30/133_NE	Beryllium Copper	N Type	Panel Mount Through Hole	1	11 GHz	Silver	Threaded	Female Socket Jack	Solder	Flange	50 Ohm	Solder	500 cycles	-65 °C	125 °C	Gold	1000 V	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass	Extended Insulation
