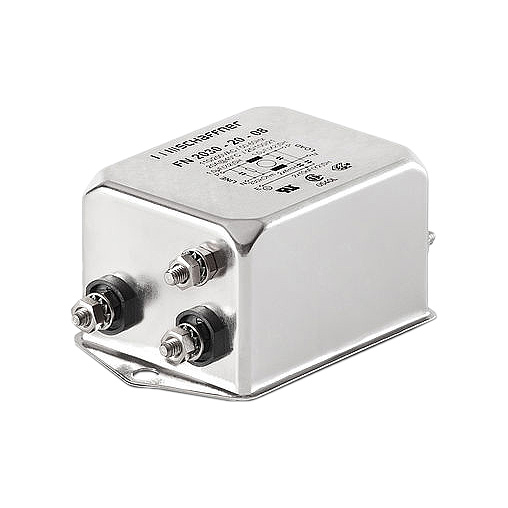

FN2030A-30-08

Active

Schaffner EMC Inc.

LINE FILTER 250VAC 30A CHASSIS

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

LINE FILTER 250VAC 30A CHASSIS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 30 A 250V DC ~ 400Hz Single Stage Threaded Post (M4)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FN2030A-30-08	FN2030A Series

Applications	Safety	Safety
Approval Agency	CSA, ENEC, UR	CSA, ENEC, UR
Configuration	Single Stage	Single Stage
Current	30 A	3 - 30 A
Filter Type	Single Phase	Single Phase
Frequency - Operating	400 Hz	400 Hz
Inductance	2 mH	2 - 14 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Threaded Post (M4)	Quick Connect, Threaded Post (M4)
Voltage - Rated AC	250 V	250 V

LINE FILTER 250VAC 12A CHASSIS

Part	Approval Agency	Operating Temperature [custom]	Voltage - Rated AC	Mounting Type	Filter Type	Configuration	Termination Style	Applications	Frequency - Operating	Inductance	Current
Schaffner EMC Inc. FN2030A-12-06	CSA, ENEC, UR	-25 °C, 100 °C	250 V	Chassis Mount	Single Phase	Single Stage	Quick Connect	Safety	400 Hz	4 mH	12 A
Schaffner EMC Inc. FN2030A-6-06	CSA, ENEC, UR	-25 °C, 100 °C	250 V	Chassis Mount	Single Phase	Single Stage	Quick Connect	Safety	400 Hz	8 mH	6 A
Schaffner EMC Inc. FN2030A-3-06	CSA, ENEC, UR	-25 °C, 100 °C	250 V	Chassis Mount	Single Phase	Single Stage	Quick Connect	Safety	400 Hz	14 mH	3 A
Schaffner EMC Inc. FN2030A-8-06	CSA, ENEC, UR	-25 °C, 100 °C	250 V	Chassis Mount	Single Phase	Single Stage	Quick Connect	Safety	400 Hz	8 mH	8 A
Schaffner EMC Inc. FN2030A-30-08	CSA, ENEC, UR	-25 °C, 100 °C	250 V	Chassis Mount	Single Phase	Single Stage	Threaded Post (M4)	Safety	400 Hz	2 mH	30 A
Schaffner EMC Inc. FN2030A-20-06	CSA, ENEC, UR	-25 °C, 100 °C	250 V	Chassis Mount	Single Phase	Single Stage	Quick Connect	Safety	400 Hz	4 mH	20 A
Schaffner EMC Inc. FN2030A-4-06	CSA, ENEC, UR	-25 °C, 100 °C	250 V	Chassis Mount	Single Phase	Single Stage	Quick Connect	Safety	400 Hz	14 mH	4 A
