Technical Specifications
Parameters and characteristics for this part
| Specification | STGB5H60DF |
|---|---|
| Current - Collector Pulsed (Icm) | 20 A |
| Gate Charge | 43 nC |
| IGBT Type | Trench Field Stop |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |

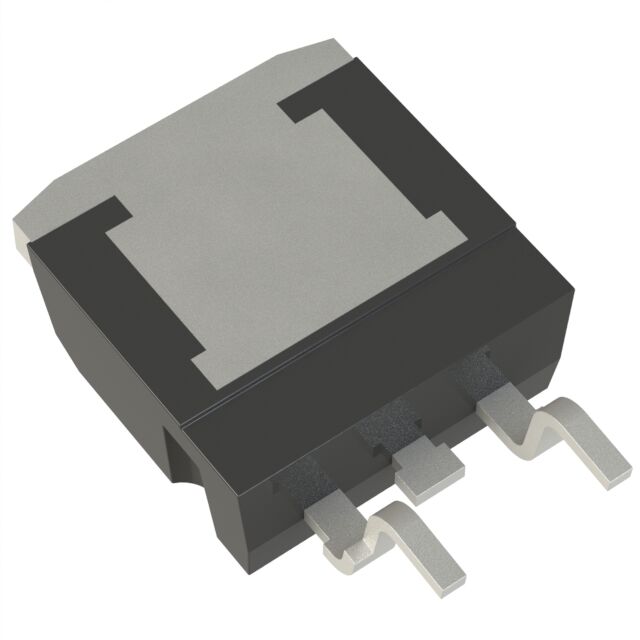

| Package / Case | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 |
| Power - Max [Max] | 88 W |
| Reverse Recovery Time (trr) | 134.5 ns |
| Supplier Device Package | TO-263 (D2PAK) |
| Switching Energy | 56 µJ, 78.5 µJ |
| Td (on/off) @ 25°C | 30 ns, 140 ns |
| Test Condition | 5 A, 47 Ohm, 400 V, 15 V |
| Vce(on) (Max) @ Vge, Ic | 1.95 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.86 | |
| 10 | $ 1.18 | |||
| 100 | $ 0.80 | |||
| 500 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 1.86 | ||
| 10 | $ 1.18 | |||
| 100 | $ 0.80 | |||
| 500 | $ 0.63 | |||
| Tape & Reel (TR) | 1000 | $ 0.58 | ||
| 2000 | $ 0.51 | |||
| 3000 | $ 0.50 | |||
| 5000 | $ 0.48 | |||
| 7000 | $ 0.47 | |||
Description
General part information
STGB5H60DF Series
These devices are IGBTs developed using an advanced proprietary trench gate field-stop structure. These devices are part of the H series of IGBTs, which represents an optimum compromise between conduction and switching losses to maximize the efficiency of high switching frequency converters. Furthermore, a slightly positive VCE(sat)temperature coefficient and very tight parameter distribution result in safer paralleling operation.
