56S101-117N5

Active

Rosenberger

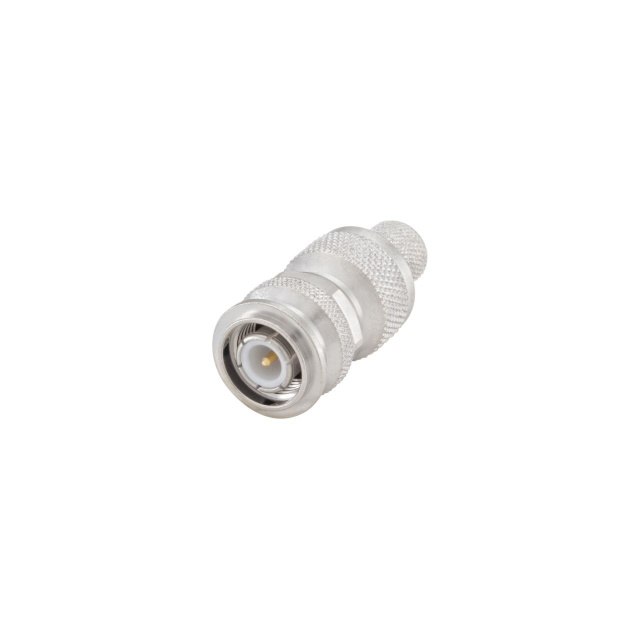

TNC STRAIGHT PLUG

Search across all available documentation for this part.

Active

Rosenberger

TNC STRAIGHT PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	56S101-117N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-214
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Frequency - Max [Max]	Number of Ports	Body Material	Voltage Rating	Connector Style	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Body Finish	Connector Type	Center Contact Material	Dielectric Material	Mounting Type	Cable Group	Center Contact Plating	Mating Cycles	Impedance	Contact Termination
Rosenberger 56S101-117N5	10 GHz	1	Brass	500 V	TNC	Silver	-65 ░C	165 °C	Crimp	White Bronze	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	RG-214	Gold	500	50 Ohms	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 18.58

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
