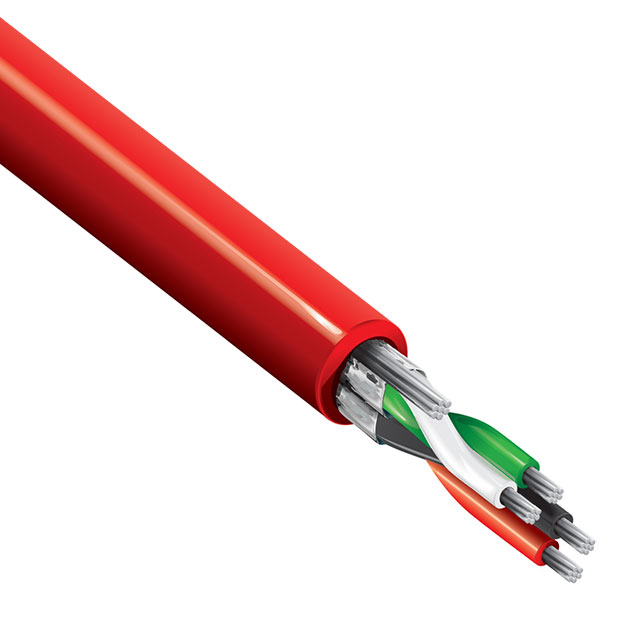

MULTI-PAIR 4COND 22AWG RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
88723 002500
ActiveBelden Inc.
MULTI-PAIR 4COND 22AWG RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 88723 002500 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 3.76 mm |
| Jacket (Insulation) Diameter [diameter] | 0.148 in |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket (Insulation) Thickness | 0.356 mm |
| Jacket (Insulation) Thickness | 0.014 in |
| Jacket Color | Red |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -70 °C |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 4.30 | |
| 1000 | $ 4.08 | |||
| 1500 | $ 3.96 | |||
| 2500 | $ 3.83 | |||
Description
General part information
88723 Series
4 (2 Pair Twisted) Conductor Multi-Pair Cable Red 22 AWG Foil 500.0' (152.4m)
