Q-1T00P0005003M

Active

Amphenol Custom Cable

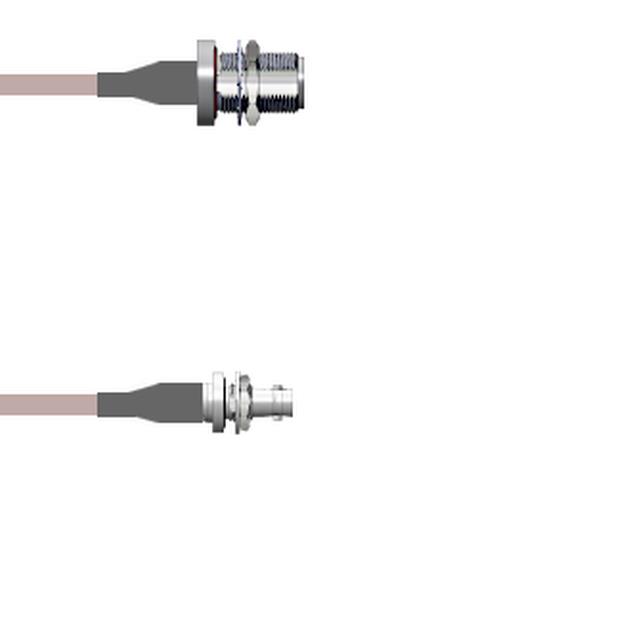

COAX CBL HD-BNC TO N-TYPE 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T00P0005003M

Active

Amphenol Custom Cable

COAX CBL HD-BNC TO N-TYPE 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T00P0005003M

1st Connector	HD-BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-1T00P0 Series

Part	1st Connector Mounting Feature	2nd Connector	Style	2nd Contact Gender	1st Connector Mounting Type	Length	Length	Length	Overall Impedance	1st Contact Gender	Features	2nd Connector Mounting Feature	Color	1st Connector	Cable Type	2nd Connector Mounting Type	Frequency - Max [Max]	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1T00P0005072i	Bulkhead - Front Side Nut	N-Type Jack	HD-BNC to N-Type	Female	Panel Mount	6 ft	72 in	1.8 m	50 Ohms	Female	Shielded	Bulkhead - Front Side Nut	Copper	HD-BNC Jack	RG-316	Panel Mount	6000 MHz
Amphenol Custom Cable Q-1T00P0005018i	Bulkhead - Front Side Nut	N-Type Jack	HD-BNC to N-Type	Female	Panel Mount				50 Ohms	Female	Shielded	Bulkhead - Front Side Nut	Copper	HD-BNC Jack	RG-316	Panel Mount	6000 MHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1T00P00032.5M	Bulkhead - Front Side Nut	N-Type Jack	HD-BNC to N-Type	Female	Panel Mount	8.2 '	98.4 in	2.5 m	50 Ohms	Female	Shielded	Bulkhead - Front Side Nut	Black	HD-BNC Jack	RG-174	Panel Mount	6000 MHz
Amphenol Custom Cable Q-1T00P0003018i	Bulkhead - Front Side Nut	N-Type Jack	HD-BNC to N-Type	Female	Panel Mount				50 Ohms	Female	Shielded	Bulkhead - Front Side Nut	Black	HD-BNC Jack	RG-174	Panel Mount	6000 MHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1T00P0005009i	Bulkhead - Front Side Nut	N-Type Jack	HD-BNC to N-Type	Female	Panel Mount		9 "	228.6 mm	50 Ohms	Female	Shielded	Bulkhead - Front Side Nut	Copper	HD-BNC Jack	RG-316	Panel Mount	6000 MHz
Amphenol Custom Cable Q-1T00P0003024i	Bulkhead - Front Side Nut	N-Type Jack	HD-BNC to N-Type	Female	Panel Mount		24 "	609.6 mm	50 Ohms	Female	Shielded	Bulkhead - Front Side Nut	Black	HD-BNC Jack	RG-174	Panel Mount	6000 MHz
Amphenol Custom Cable Q-1T00P0003001M	Bulkhead - Front Side Nut	N-Type Jack	HD-BNC to N-Type	Female	Panel Mount	3.3 ft	39.4 in	1 m	50 Ohms	Female	Shielded	Bulkhead - Front Side Nut	Black	HD-BNC Jack	RG-174	Panel Mount	6000 MHz
Amphenol Custom Cable Q-1T00P0003.25M	Bulkhead - Front Side Nut	N-Type Jack	HD-BNC to N-Type	Female	Panel Mount				50 Ohms	Female	Shielded	Bulkhead - Front Side Nut	Black	HD-BNC Jack	RG-174	Panel Mount	6000 MHz		250 mm	9.843 "
Amphenol Custom Cable Q-1T00P0005003M	Bulkhead - Front Side Nut	N-Type Jack	HD-BNC to N-Type	Female	Panel Mount	9.8 '	118.1 in	3 m	50 Ohms	Female	Shielded	Bulkhead - Front Side Nut	Copper	HD-BNC Jack	RG-316	Panel Mount	6000 MHz
Amphenol Custom Cable Q-1T00P0003012i	Bulkhead - Front Side Nut	N-Type Jack	HD-BNC to N-Type	Female	Panel Mount		12 "	304.8 mm	50 Ohms	Female	Shielded	Bulkhead - Front Side Nut	Black	HD-BNC Jack	RG-174	Panel Mount	6000 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 132.23
		25	$ 129.64
		50	$ 127.05
		100	$ 124.46
		250	$ 121.87

Description

General part information

Q-1T00P0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-316 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
