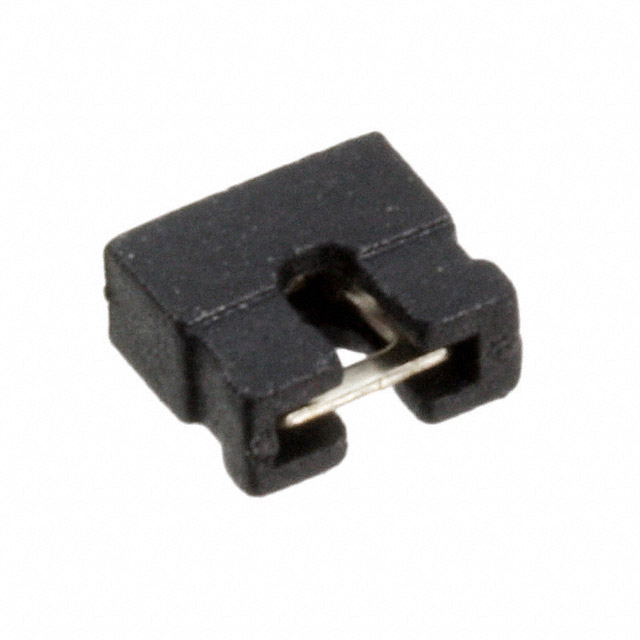

810-002-SP2L001

Active

MH Connectors

810-002-SP2L001 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

810-002-SP2L001 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	810-002-SP2L001

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	3.56 mm
Height [z]	0.14 "
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Type	Open Top

Part	Height [z]	Height [z]	Pitch [x]	Pitch [x]	Type	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Contact Finish	Color	Gender	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)	Contact Finish Thickness
MH Connectors 810-002-LP1R001	1.91 mm	0.075 in	0.079 in	2 mm	Open Top	15 µin	0.38 µm	Polyamide (PA6T) Nylon 6T	Gold	Black	Female Sockets	UL94 V-0	1 x 2	2
MH Connectors 810-002-SP2L001	3.56 mm	0.14 "	0.079 in	2 mm	Open Top			Polybutylene Terephthalate (PBT) Glass Filled	Gold	Black	Female Sockets	UL94 V-0	1 x 2	2	3 A	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.079" (2.00mm) Gold
