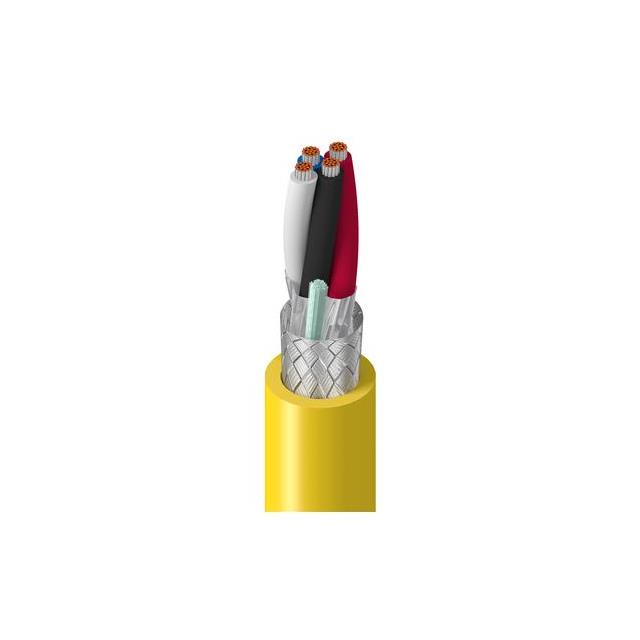

3083A 5601000
ActiveBelden Inc.
MULTI-PAIR 4COND 15/18AWG
Deep-Dive with AI
Search across all available documentation for this part.
3083A 5601000
ActiveBelden Inc.
MULTI-PAIR 4COND 15/18AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3083A 5601000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC), Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 Strands |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 27 AWG |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.449 " |
| Jacket (Insulation) Diameter [diameter] | 11.41 mm |
| Jacket (Insulation) Material | Chlorinated Polyethylene (CPE) |
| Jacket (Insulation) Thickness | 1.346 mm |
| Jacket (Insulation) Thickness | 0.053 in |
| Jacket Color | Yellow |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Shield Coverage | 100 %, 65 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Voltage | 300 V |
| Wire Gauge | 15 AWG, 18 AWG |
3083A Series
| Part | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket Color | Cable Type | Number of Conductors | Length | Length | Jacket (Insulation) Material | Features | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Coverage | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. | 15 AWG 18 AWG | 0.449 " | 11.41 mm | Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC) | Aluminum Copper Tinned | -30 ░C | 105 ░C | Copper Tinned | Yellow | Multi-Pair | 4 | 1000 ft | 304.8 m | Chlorinated Polyethylene (CPE) | Drain Wire | Braid Foil | 1.346 mm | 0.053 in | 65 % 100 % | 300 V | 19 Strands | 19 | 27 AWG | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 10.61 | |
Description
General part information
3083A Series
4 (2 Pair) Conductor Multi-Pair Cable Yellow 15 AWG, 18 AWG Foil, Braid 1000.0' (304.8m)
