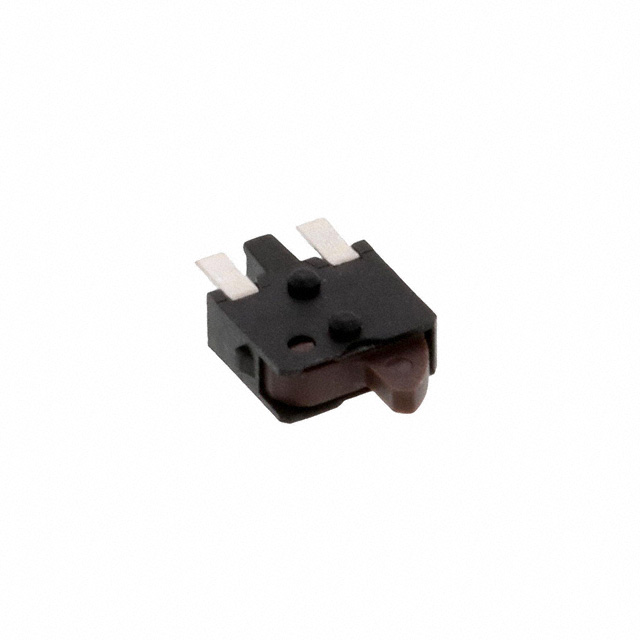

JJJHRUG200NOPMRTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECT SPST-NO 0.05A 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JJJHRUG200NOPMRTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECT SPST-NO 0.05A 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JJJHRUG200NOPMRTR |
|---|---|
| Actuator Type | Angled Toggle (Detector) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 50 mA |
| Electrical Life | 100000 Cycles |
| Features | Board Guide |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 50 gf |
| Operating Position | 0.117 in |
| Operating Position | 2.96 mm |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Pretravel | 0.25 mm |
| Pretravel | 0.01 in |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.46 | |||
| 25 | $ 0.45 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.31 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.47 | |||
| 25 | $ 0.43 | |||
| 100 | $ 0.38 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.31 | |||
| Tape & Reel (TR) | 3000 | $ 0.37 | ||
Description
General part information
JJJHR Series
Switch SPST-NO Surface Mount
