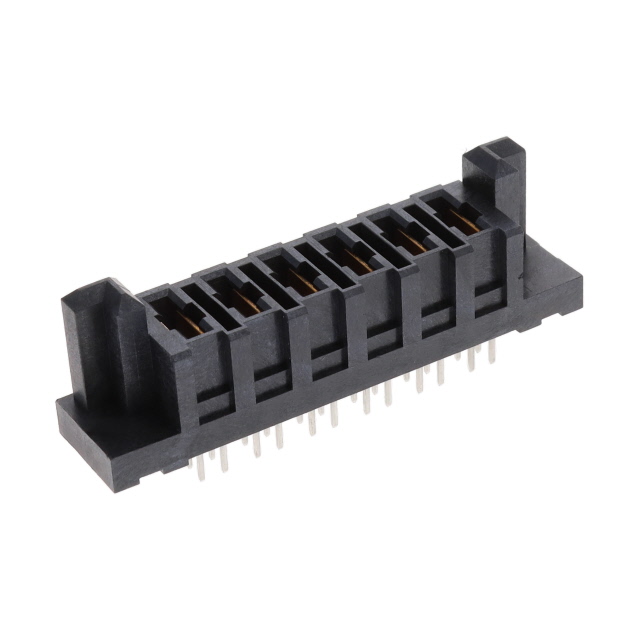

PES-06-02-L-VT

Active

Samtec Inc.

CONN RCPT 6POS 6.35MM PCB SLDR

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 6POS 6.35MM PCB SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	PES-06-02-L-VT

Color	Black
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	40 A
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.25 in
Pitch [x]	6.35 mm
Termination	Solder
Voltage Rating	1025 V

Part	Current Rating (Amps)	Contact Material	Pitch [x]	Pitch [x]	Contact Finish	Material - Insulation	Number of Positions	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Color	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Connector Type
Samtec Inc. PES-06-02-L-VT	40 A	Copper Alloy	0.25 in	6.35 mm	Gold	Liquid Crystal Polymer (LCP)	6	1	Through Hole	-55 °C	125 °C	Solder	Black	1025 V	10 Áin	0.25 Ám	Receptacle Female Blade Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Receptacle, Female Blade Sockets Connector Solder 0.250" (6.35mm) Through Hole
