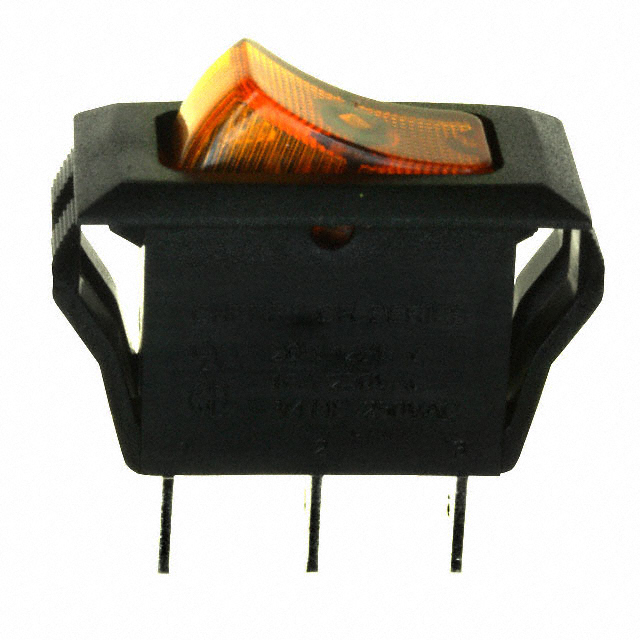

CRE22F2BBALE

Active

ZF Electronics

SWITCH ROCKER SPST 20A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER SPST 20A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRE22F2BBALE	CRE22F2B Series

Actuator Marking	No Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated	Concave (Curved) - Illuminated, Concave (Curved)
Circuit	SPST	SPST
Color - Actuator/Cap	Amber	Amber, Black, Red, Green
Current Rating (Amps)	20 A	20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	Neon, Amber	Neon, Amber, Red, Green
Illumination Voltage (Nominal)	125 VAC	125 VAC
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [x]	28.5 mm	28.5 mm
Panel Cutout Dimensions [y]	12.1 mm	12.1 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER SPST 20A 125V

Part	Voltage Rating - AC	Mounting Type	Actuator Marking	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Illumination Type, Color	Current Rating (Amps)	Electrical Life	Mechanical Life	Switch Function	Color - Actuator/Cap
ZF Electronics CRE22F2BBALE	125 V	Panel Mount, Snap-In	No Marking	SPST	85 °C	-20 C	Concave (Curved) - Illuminated	Quick Connect - 0.250" (6.3mm)	28.5 mm	12.1 mm	125 VAC	Amber, Neon	20 A	6000 Cycles	100000 Cycles	On-Off	Amber
ZF Electronics CRE22F2BBBNE	125 V	Panel Mount, Snap-In	No Marking	SPST	85 °C	-20 C	Concave (Curved)	Quick Connect - 0.250" (6.3mm)	28.5 mm	12.1 mm			20 A	6000 Cycles	100000 Cycles	On-Off	Black
ZF Electronics CRE22F2BBRLE	125 V	Panel Mount, Snap-In	No Marking	SPST	85 °C	-20 C	Concave (Curved) - Illuminated	Quick Connect - 0.250" (6.3mm)	28.5 mm	12.1 mm	125 VAC	Neon, Red	20 A	6000 Cycles	100000 Cycles	On-Off	Red
ZF Electronics CRE22F2BBGLE	125 V	Panel Mount, Snap-In	No Marking	SPST	85 °C	-20 C	Concave (Curved) - Illuminated	Quick Connect - 0.250" (6.3mm)	28.5 mm	12.1 mm	125 VAC	Green, Neon	20 A	6000 Cycles	100000 Cycles	On-Off	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.51

General part information

Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In
