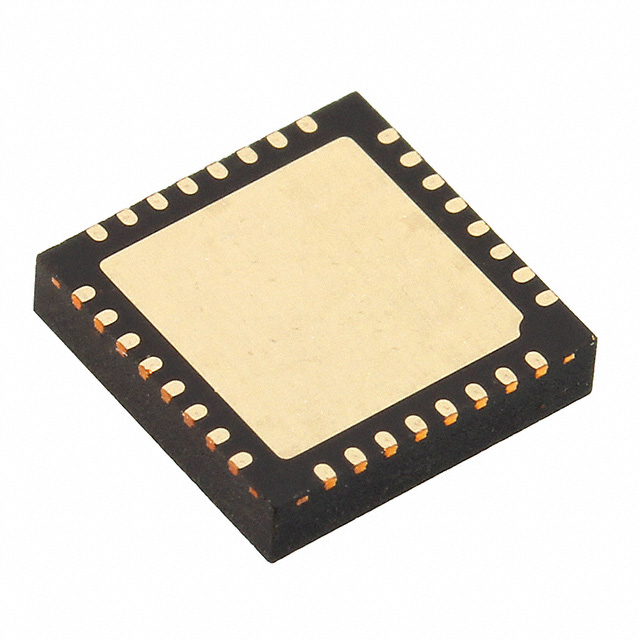

MASL-011023-TR0500
ActiveMACOM Technology Solutions
IC RF SWITCH SPDT 3.5GHZ 32HQFN
Deep-Dive with AI
Search across all available documentation for this part.
MASL-011023-TR0500
ActiveMACOM Technology Solutions
IC RF SWITCH SPDT 3.5GHZ 32HQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MASL-011023-TR0500 |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 3.5 GHz |
| Frequency Range [Min] | 2.7 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.85 dB |
| Isolation | 30 dB |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 32-LQFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 32-HQFN (7x7) |
| Test Frequency | 3.5 GHz |
| Topology | Reflective |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 91.27 | |
| Digi-Reel® | 1 | $ 91.27 | ||
| Tape & Reel (TR) | 500 | $ 75.37 | ||
Description
General part information
MASL-011023 Series
RF Switch IC General Purpose SPDT 3.5 GHz 50Ohm 32-HQFN (7x7)
Documents
Technical documentation and resources
No documents available
