WR9QH833T00NACFR6B
ActiveGlobTek, Inc.

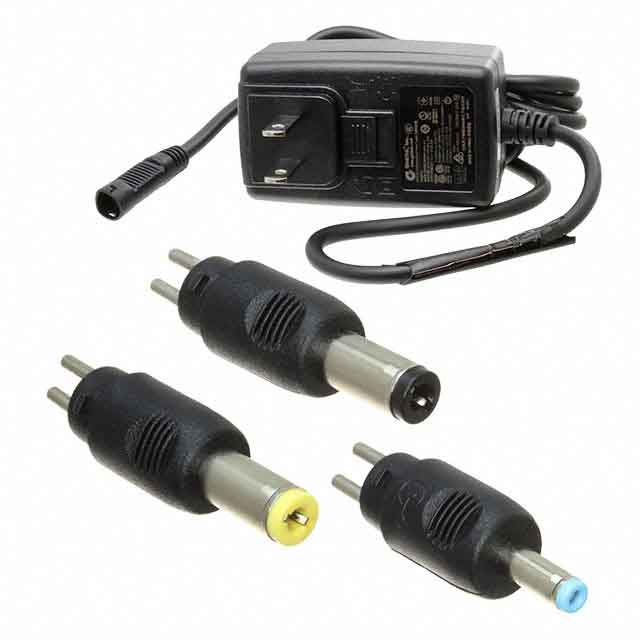

AC/DC WALL MOUNT ADAPTER 18V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WR9QH833T00NACFR6B
ActiveGlobTek, Inc.
AC/DC WALL MOUNT ADAPTER 18V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR9QH833T00NACFR6B |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | UKRSepro, NOM, CCC, ETL, cETLus, LPS, BIS, EAC, UL, CB, S-Mark, VCCI, CE, PSE, RCM |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 830 mA |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug Kit, 1.3mm x 3.5mm |
| Power (Watts) | 15 W |
| Region Utilized | International |
| Size / Dimension [x] | 74 mm |
| Size / Dimension [x] | 2.91 " |
| Size / Dimension [y] | 43.5 mm |
| Size / Dimension [y] | 1.71 in |
| Size / Dimension [z] | 36.8 mm |
| Size / Dimension [z] | 1.45 in |
| Standard Number | 60601-1, 60335-1, 60950-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.40 | |
| 5 | $ 21.50 | |||
| 10 | $ 21.13 | |||
| 25 | $ 20.64 | |||
| 50 | $ 20.28 | |||
| 100 | $ 19.93 | |||
| 250 | $ 19.47 | |||
| 500 | $ 19.13 | |||
Description
General part information
WR9QH833 Series
18V 15 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
Documents
Technical documentation and resources
