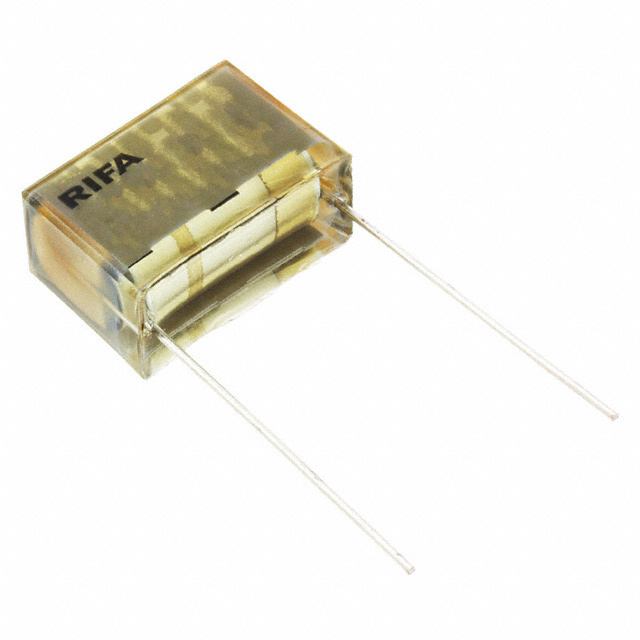

PMR209MC6220M220R30
ActiveKEMET
SUPPRESSION CAP, 0.22UF, X2, 250V ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
PMR209MC6220M220R30
ActiveKEMET
SUPPRESSION CAP, 0.22UF, X2, 250V ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PMR209MC6220M220R30 |
|---|---|
| Applications | General Purpose |
| ESD Protection | False |
| Filter Order | 1st |
| Height [z] | 0.551 in |
| Height [z] | 14 mm |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Resistance - Channel (Ohms) | 220 Ohms |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [x] | 0.945 in |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [y] | 0.299 in |
| Technology | RC |
| Type | Low Pass |
| Values | 220 Ohms, 0.22 µF |
| Voltage - Rated | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PMR209MC Series
RC EMI Filter 1st Order Low Pass 1 Channel R = 220Ohms, C = 0.22µF Radial
