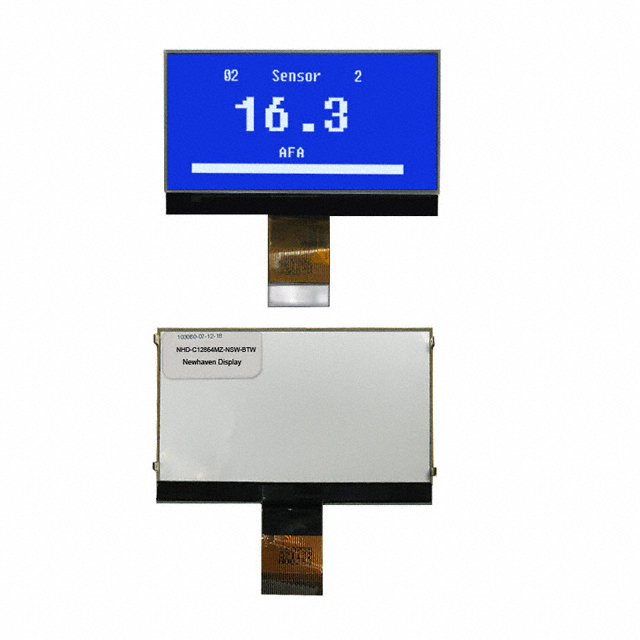

NHD-C12864MR-NSW-BTW

Obsolete

Newhaven Display Intl

LCD COG GRAPHIC 128X64 TRANSM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Solvent Precautions +1

NHD-C12864MR-NSW-BTW

Obsolete

Newhaven Display Intl

LCD COG GRAPHIC 128X64 TRANSM

Deep-Dive with AI

DocumentsDatasheet LCD Solvent Precautions +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NHD-C12864 Series

Graphic LCD Display Module Transmissive White (Blue - Inverted) STN - Super-Twisted Nematic Parallel/Serial 128 x 64

Documents

Technical documentation and resources

Datasheet

LCD Solvent Precautions

LCD Safe Handling Procedure

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NHD-C12864MR-NSW-BTW	NHD-C12864 Series

	-	-
Background Color	Blue	Gray, Blue, Black, Yellow (Black - Inverted), White, Blue (Black - Inverted), Green, Red
Background Color	White	White, White - Inverted, Black
Backlight	LED - White	LED - White, Without Backlight, LED - Blue, LED, Red, Green, Blue, LED - Red
Controller Type	-	ST-7565R, ST7565P-G, ST7565R, ST-7565V, ST7565R-G, SPLC-501C
Display Mode	Transmissive	Transflective, Reflective, Transmissive
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic, FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.43 mm	0.24 - 0.52 mm
Dot Pitch [y]	0.43 mm	0.3 - 0.56 mm
Dot Pixels [x]	128	128
Dot Pixels [y]	64	64
Dot Size	-	0.27 mm
Dot Size	-	0.48 mm
Dot Size	-	0.48 mm
Dot Size	-	0.35 mm
Dot Size	-	0.35 mm
Dot Size [x]	0.39 mm	0.23 - 0.47 mm
Dot Size [y]	0.39 mm	0.27 - 0.51 mm
Graphics Color	White, Blue	Blue, Black (Gray - Inverted), White, Black
Graphics Color	-	Red
Interface	Parallel/Serial	Parallel/Serial, Parallel, SPI, Parallel, 8-Bit, Serial
Viewing Area	-	40 mm
Viewing Area	-	65.5 mm
Viewing Area	-	22.2 - 49.53 mm
Viewing Area	-	24 - 26.67 mm
Viewing Area	-	33.8 - 70.7 mm

NHD-C12864 Series

LCD GRAPH MOD 128X64 COG LCD

Part	Dot Pixels [y]	Dot Pixels [x]	Backlight	Graphics Color	Viewing Area [custom]	Viewing Area [custom]	Display Mode	Dot Size [y]	Dot Size [x]	Background Color	Dot Pitch [x]	Dot Pitch [y]	Display Type	Interface	Viewing Area [y]	Viewing Area [z]	Controller Type	Dot Size [z]	Background Color	Viewing Area [x]	Dot Size [custom]	Dot Size [custom]	Dot Size [custom]	Dot Size [custom]
Newhaven Display Intl NHD-C12864CR-FSW-GBW	64	128	LED - White	Blue	40 mm	65.5 mm	Transflective	0.51 mm	0.42 mm	Gray	0.46 mm	0.56 mm	STN - Super-Twisted Nematic	Parallel/Serial
Newhaven Display Intl NHD-C12864B2Z-RN-FBW	64	128	Without Backlight	Black (Gray - Inverted)			Reflective	0.27 mm		Gray	0.31 mm	0.31 mm	FSTN - Film Super-Twisted Nematic	Parallel	44 mm	24 mm	ST-7565R	0.27 mm
Newhaven Display Intl NHD-C12864WO-B1TMI#-M	64	128	LED - White	Blue, White			Transmissive	0.47 mm	0.47 mm	Blue	0.5 mm	0.5 mm	STN - Super-Twisted Nematic	Parallel/Serial	36.5 mm		ST7565P-G		White	69 mm
Newhaven Display Intl NHD-C12864MR-NSW-BTW	64	128	LED - White	Blue, White			Transmissive	0.39 mm	0.39 mm	Blue	0.43 mm	0.43 mm	STN - Super-Twisted Nematic	Parallel/Serial					White
Newhaven Display Intl NHD-C12864WO-B1TTI#-M	64	128	LED - White	White			Transmissive	0.47 mm	0.47 mm	Black	0.5 mm	0.5 mm	FSTN - Film Super-Twisted Nematic	Parallel/Serial	36.5 mm		ST7565P-G		White - Inverted	69 mm
Newhaven Display Intl NHD-C12864AZ-FSY-HT
Newhaven Display Intl NHD-C12864AZ-FSY-YBW	64	128		Black			Transflective			Yellow (Black - Inverted)	0.52 mm	0.52 mm	STN - Super-Twisted Nematic	SPI	38.8 mm					70.7 mm	0.48 mm	0.48 mm
Newhaven Display Intl NHD-C12864WO-B1TGH#-M	64	128	LED - White	Blue			Transflective	0.47 mm	0.47 mm	Gray	0.5 mm	0.5 mm	STN - Super-Twisted Nematic	Parallel/Serial	36.5 mm		ST7565P-G			69 mm
Newhaven Display Intl NHD-C12864KGZ-FSW-GBW	64	128	LED - White	Blue			Transflective			Gray	0.37 mm	0.37 mm	STN - Super-Twisted Nematic	Parallel, 8-Bit	49.53 mm	26.67 mm	ST7565R						0.35 mm	0.35 mm
Newhaven Display Intl NHD-C12864HZ-FN-FBW	64	128	Without Backlight	Black (Gray - Inverted)			Transflective	0.29 mm	0.23 mm	Gray	0.24 mm	0.3 mm	FSTN - Film Super-Twisted Nematic	Parallel, 8-Bit	22.2 mm					33.8 mm
