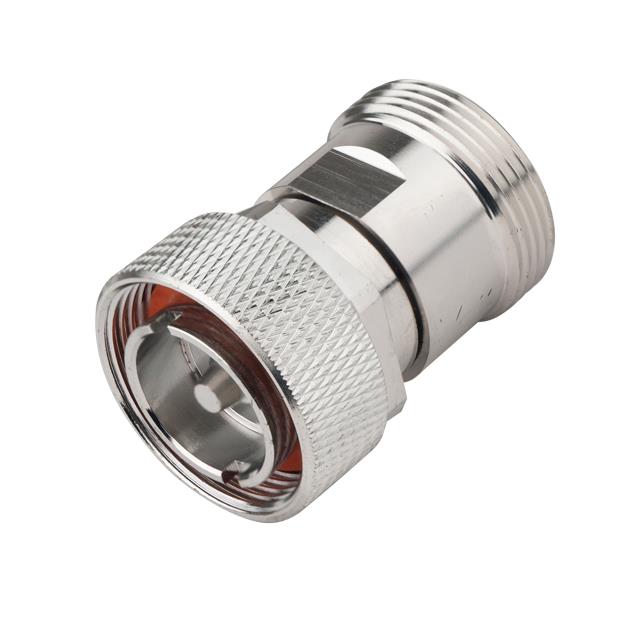

RFD-1660-WB

Active

RF Industries

7/16 FEMALE-7/16 MALE

Search across all available documentation for this part.

Active

RF Industries

7/16 FEMALE-7/16 MALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFD-1660-WB

Adapter Series	7/16 DIN to 7/16 DIN
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Conversion Type	Same Series
Convert From (Adapter End)	7/16 Jack, Female Socket
Convert To (Adapter End)	Male Pin, 7/16 Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

7/16 FEMALE-7/16 MALE

Part	Dielectric Material	Mounting Type	Adapter Type	Body Finish	Convert From (Adapter End)	Body Material	Convert To (Adapter End)	Center Contact Material	Frequency - Max [Max]	Conversion Type	Adapter Series	Style	Impedance
RF Industries RFD-1660-WB	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Plug to Jack	White Bronze	7/16 Jack, Female Socket	Brass	7/16 Plug, Male Pin	Brass	7.5 GHz	Same Series	7/16 DIN to 7/16 DIN	Straight	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 7/16 Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohms
