JL-100-25-T

Active

Samtec Inc.

JUMPER (BUSBAR), JUMPER, RECEPTACLE CONNECTORS, 2 POSITIONS, 2.54 MM

Search across all available documentation for this part.

Active

Samtec Inc.

JUMPER (BUSBAR), JUMPER, RECEPTACLE CONNECTORS, 2 POSITIONS, 2.54 MM

Technical Specifications

Parameters and characteristics for this part

Specification	JL-100-25-T

Color	White
Contact Finish	Silver
Gender	Male Pins
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Insulated

Part	Pitch [x]	Pitch [x]	Type	Contact Finish	Gender	Color	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Samtec Inc. JL-100-25-T	2.54 mm	0.1 in	Insulated	Silver	Male Pins	White	1 x 2	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

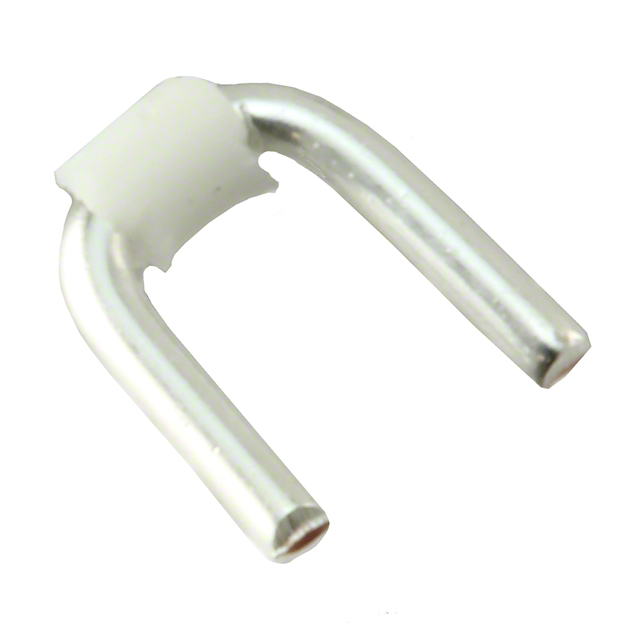

The JL-100-25-T is a 2-position Jumper (Busbar) with white PTFE insulation. It is suitable for use with the receptacle connectors.
