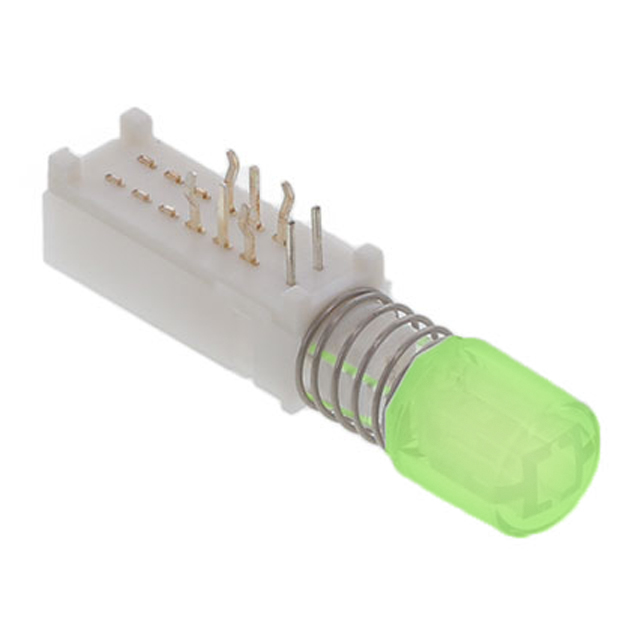

WBL2UOAGQR05CLR

Active

E-Switch

SWITCH PUSHBUTTON DPDT 300MA 30V

Deep-Dive with AI

Search across all available documentation for this part.

WBL2UOAGQR05CLR

Active

E-Switch

SWITCH PUSHBUTTON DPDT 300MA 30V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WBL2UOAGQR05CLR

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	300 mA
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	1.7 VDC
Mechanical Life	10000 Steps
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	30 V

WBL2 Series

Part	Voltage Rating - DC	Illumination Voltage (Nominal)	Termination Style	Current Rating (Amps)	Type	Switch Function	Illumination Type, Color	Circuit	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Mechanical Life	Color - Actuator/Cap	Actuator Marking	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch WBL2UEEGYQR05BLKPWR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-On	Green LED Yellow	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear
E-Switch WBL2UOAYBQR05CLR	30 V	1.7 VDC 3.5 VDC	PC Pin	300 mA	Illuminated Standard	On-Mom	Blue LED Yellow	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEEGBQR05CLR	30 V	1.7 VDC 3.5 VDC	PC Pin	300 mA	Illuminated Standard	On-On		DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking	Blue/Green	LED
E-Switch WBL2UEERQR05CLR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-On	LED Red	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEERBQR05CLR	30 V	1.7 VDC 3.5 VDC	PC Pin	300 mA	Illuminated Standard	On-On	Blue/Red LED	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEEBQR05CLR	30 V	3.5 VDC	PC Pin	300 mA	Illuminated Standard	On-On	Blue LED	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEEGQ	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-On	Green LED	DPDT	Plunger for Cap	-20 C	70 °C	Through Hole Right Angle	10000 Steps		No Marking
E-Switch WBL2UOARQR05CLR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-Mom	LED Red	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEERQ	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-On	LED Red	DPDT	Plunger for Cap	-20 C	70 °C	Through Hole Right Angle	10000 Steps		No Marking
E-Switch WBL2UOAGQR05CLR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-Mom	Green LED	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1176	$ 1.51

Description

General part information

WBL2 Series

Pushbutton Switch DPDT Standard, Illuminated Through Hole, Right Angle
