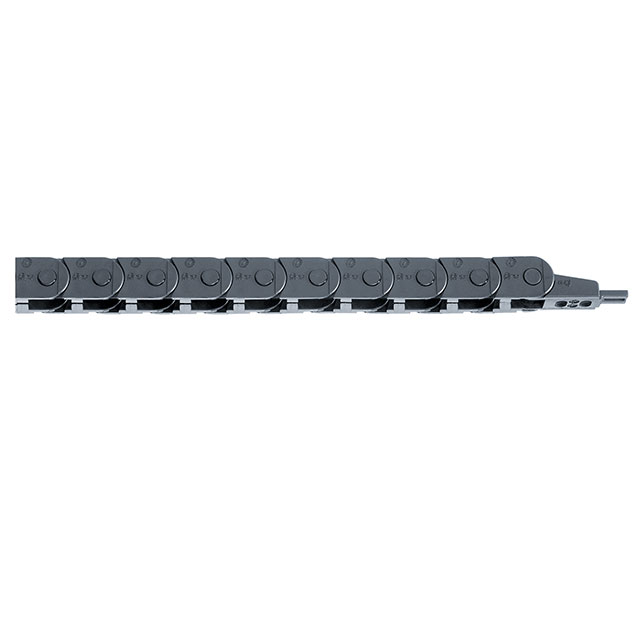

Z14-2-028-0

Active

Igus

CABLE CARRIER .98H X 1.46W 1=1FT

Search across all available documentation for this part.

Active

Igus

CABLE CARRIER .98H X 1.46W 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	Z14-2-028-0

Cavity Height [z]	0.75 in
Cavity Height [z]	19.05 mm
Cavity Width [y]	24.89 mm
Cavity Width [y]	0.98 in
Frame Type	Open
Link Pitch	1.2 in
Link Pitch	30.48 mm
Loading Side	Inside and Outside Bend
Material	Igumid G
Minimum Bend Radius	27.94 mm
Minimum Bend Radius [Min] [radius]	1.1 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Outer Height	0.98 in
Outer Height	24.89 mm
Outer Width	37.08 mm
Outer Width [x]	1.46 in

CABLE CARRIER .98H X 1.46W 1=1FT

Part	Cavity Width [y]	Cavity Width [y]	Outer Width	Outer Width [x]	Frame Type	Outer Height	Outer Height	Loading Side	Cavity Height [z]	Cavity Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Minimum Bend Radius [Min] [radius]	Minimum Bend Radius	Link Pitch	Link Pitch	Material
Igus Z14-2-028-0	24.89 mm	0.98 in	37.08 mm	1.46 in	Open	0.98 in	24.89 mm	Inside and Outside Bend	0.75 in	19.05 mm	-40 °C	80 C	1.1 in	27.94 mm	1.2 in	30.48 mm	Igumid G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CABLE CARRIER .98H X 1.46W 1=1FT
