10142961 Series

Part	Note	Contact Type	Number of Positions	Mounting Type	Number of Rows	Contact Termination	Connector Type	Pitch	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)
Amphenol ICC (FCI) 10142961-06LF	Contacts Not Included	Female Socket	6	Free Hanging (In-Line)	1	Crimp	Receptacle	0.071 in	Thermoplastic	130 °C	-40 °C
Amphenol ICC (FCI) 10142961-014LF	Contacts Not Included	Female Socket	14	Free Hanging (In-Line)	1	Crimp	Receptacle	0.071 in	Thermoplastic	130 °C	-40 °C
Amphenol ICC (FCI) 10142961-005LF	Contacts Not Included	Female Socket	5	Free Hanging (In-Line)	1	Crimp	Receptacle	0.071 in	Thermoplastic	130 °C	-40 °C
Amphenol ICC (FCI) 10142961-011LF	Contacts Not Included	Female Socket	11	Free Hanging (In-Line)	1	Crimp	Receptacle	0.071 in	Thermoplastic	130 °C	-40 °C
Amphenol ICC (FCI) 10142961-007LF	Contacts Not Included	Female Socket	7	Free Hanging (In-Line)	1	Crimp	Receptacle	0.071 in	Thermoplastic	130 °C	-40 °C
Amphenol ICC (FCI) 10142961-008LF	Contacts Not Included	Female Socket	8	Free Hanging (In-Line)	1	Crimp	Receptacle	0.071 in	Thermoplastic	130 °C	-40 °C

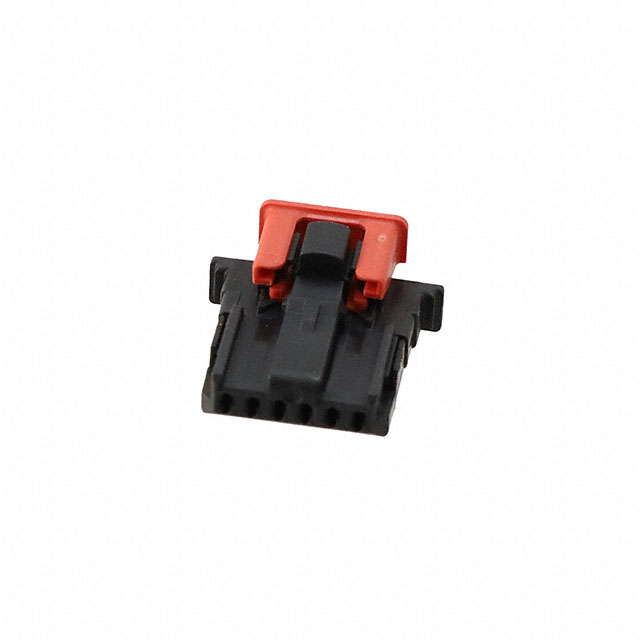

Amphenol ICC (FCI) 10142961-006LF	Contacts Not Included	Female Socket	6	Free Hanging (In-Line)	1	Crimp	Receptacle	0.071 in	Thermoplastic	130 °C	-40 °C
Amphenol ICC (FCI) 10142961-009LF	Contacts Not Included	Female Socket	9	Free Hanging (In-Line)	1	Crimp	Receptacle	0.071 in	Thermoplastic	130 °C	-40 °C
Amphenol ICC (FCI) 10142961-015LF	Contacts Not Included	Female Socket	15	Free Hanging (In-Line)	1	Crimp	Receptacle	0.071 in	Thermoplastic	130 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
