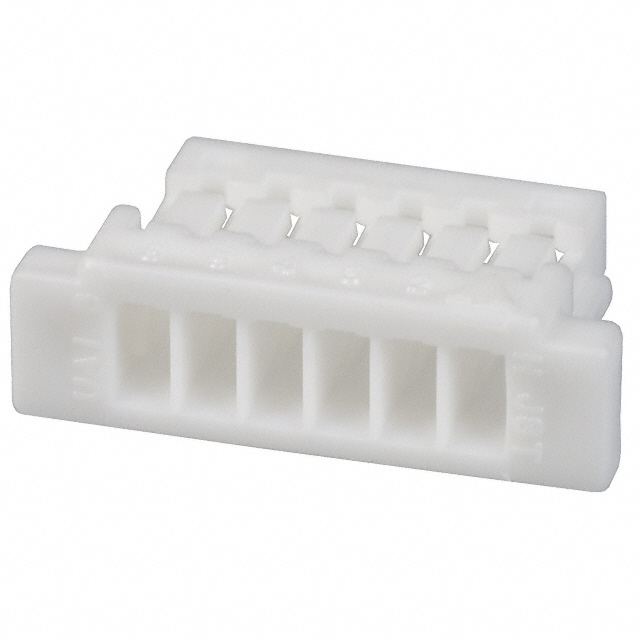

SHR-06V-S-B

Active

JST Sales America Inc.

CONN RCPT HSG 6POS 1.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 6POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	SHR-06V-S-B

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Color	Number of Positions	Connector Type	Contact Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Material	Note	Pitch [x]	Pitch [x]	Mounting Type
JST Sales America Inc. SHR-06V-S-B	Natural	6	Receptacle	Female Socket	Crimp	-25 °C	85 °C	1	Polybutylene Terephthalate (PBT)	Contacts Not Included	0.039 in	1 mm	Free Hanging (In-Line)
JST Sales America Inc. SHR-06V-S	Natural	6	Receptacle	Female Socket	Crimp	-25 °C	85 °C	1	Polybutylene Terephthalate (PBT)	Contacts Not Included	0.039 in	1 mm	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
