MCX7-J-P-HN-RA-TH1

Active

Samtec Inc.

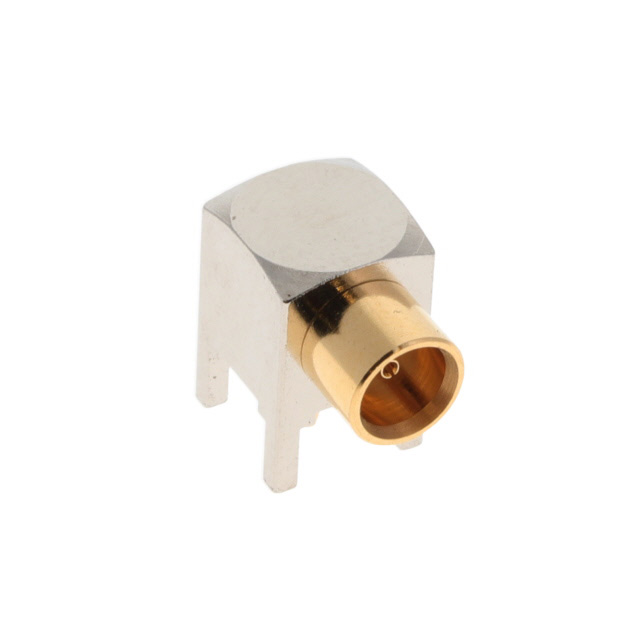

CONN MCX JACK R/A 75 OHM SOLDER

Search across all available documentation for this part.

Active

Samtec Inc.

CONN MCX JACK R/A 75 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	MCX7-J-P-HN-RA-TH1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4.5 GHz
Housing Color	Gold
Impedance	75 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	170 V

Part	Body Material	Dielectric Material	Contact Termination	Voltage Rating	Number of Ports	Mounting Type	Center Contact Material	Frequency - Max [Max]	Impedance	Housing Color	Shield Termination	Connector Style	Connector Type	Fastening Type	Body Finish	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]
Samtec Inc. MCX7-J-P-H-RA-TH1	Brass	Polytetrafluoroethylene (PTFE)	Solder	170 V	1	Through Hole Right Angle	Beryllium Copper	4.5 GHz	75 Ohms	Gold	Solder	MCX	Female Socket Jack	Snap-On	Gold	Gold	125 °C	-65 ░C
Samtec Inc. MCX7-J-P-HN-RA-TH1	Brass	Polytetrafluoroethylene (PTFE)	Solder	170 V	1	Through Hole Right Angle	Beryllium Copper	4.5 GHz	75 Ohms	Gold	Solder	MCX	Female Socket Jack	Snap-On	Gold	Gold	125 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Jack, Female Socket 75 Ohms Through Hole, Right Angle Solder
