6469048-1
ActiveTE Connectivity Raychem Cable Protection
HMZD 4PR RA HDR 80P ASSY LF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6469048-1 |
|---|---|
| Connector Style | High Speed |
| Connector Type | Header, Male Pins and Blades |
| Connector Usage | Daughtercard |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Layout, Typical [custom] | 80 |
| Contact Layout, Typical [custom] | 40 |
| Current Rating (Amps) | 0.7 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Columns | 10 |
| Number of Positions | 120 |
| Number of Positions Loaded | All |
| Number of Rows | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Termination | Press-Fit |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 50.85 | |
| 10 | $ 42.15 | |||
| 25 | $ 39.13 | |||
| 50 | $ 37.00 | |||
| 100 | $ 34.99 | |||
| 250 | $ 32.98 | |||
Description
General part information
Z-PACK HM-Zd Series

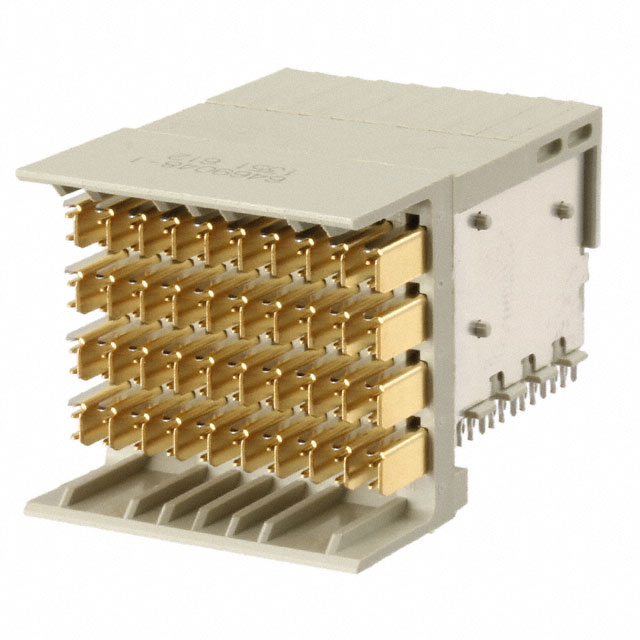

80 Position High Speed Backplane Connector, 8 Row, 10 Column, PCB Mount Header, Right Angle, Partially Shrouded, Z-PACK HM-Zd
