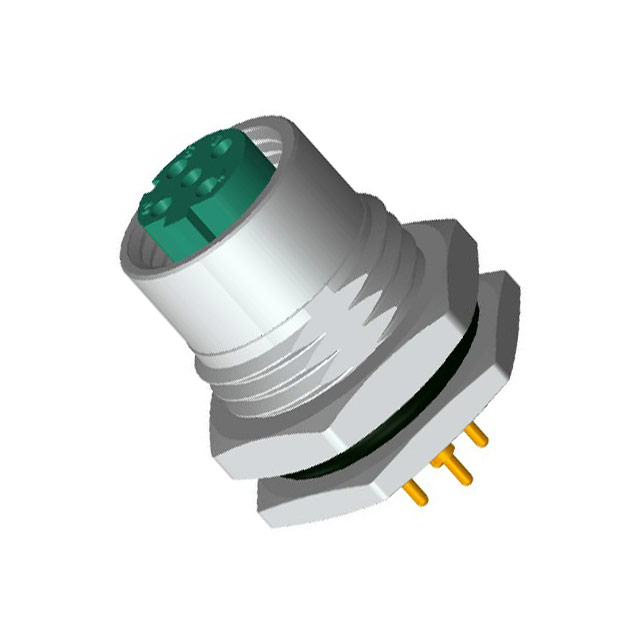

M12D-04PFFP-SF8001
ActiveAmphenol LTW
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
M12D-04PFFP-SF8001
ActiveAmphenol LTW
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M12D-04PFFP-SF8001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP68, IP69K |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | D |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.66 | |
| 10 | $ 7.80 | |||
| 25 | $ 7.35 | |||
| 50 | $ 7.16 | |||
| 100 | $ 6.97 | |||
| 250 | $ 6.22 | |||
| 450 | $ 5.84 | |||
| 950 | $ 5.16 | |||
Description
General part information
M12D-04PFFP Series
4 Position Circular Connector Receptacle, Female Sockets Solder
