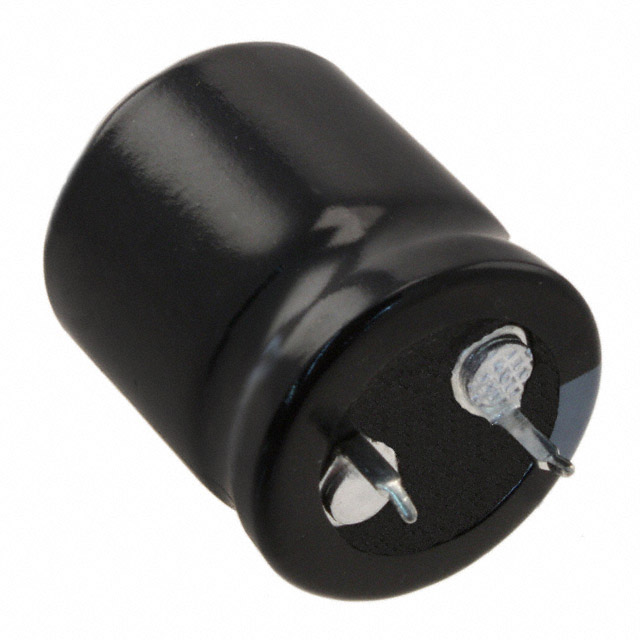

ELH686M400AQ1AA

Active

KEMET

ELECTROLYTIC CAPACITOR, SNAP-IN, ELH SERIES, 68 F, 20%, 400 V, 22 MM, 0.852 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

ELECTROLYTIC CAPACITOR, SNAP-IN, ELH SERIES, 68 F, 20%, 400 V, 22 MM, 0.852 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ELH686M400AQ1AA

Applications	General Purpose
Capacitance	68 µF
ESR (Equivalent Series Resistance)	852 mOhm
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	870 mA
Ripple Current @ Low Frequency	600 mA
Size / Dimension [diameter]	22 mm
Size / Dimension [diameter]	0.866 in
Tolerance	20 %
Voltage - Rated	400 V

Part	Polarization	Capacitance	Lifetime @ Temp.	Ripple Current @ Low Frequency	Voltage - Rated	Tolerance	ESR (Equivalent Series Resistance)	Mounting Type	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]
KEMET ELH686M400AQ1AA	Polar	68 µF	2000 Hrs	600 mA	400 V	20 %	852 mOhm	Through Hole	870 mA	1.063 in	27 mm	Radial Can - Snap-In	0.394 in	10 mm	-25 °C	85 °C	General Purpose	22 mm	0.866 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 852mOhm @ 20kHz 2000 Hrs @ 85°C
