USB-A-S-VT

Active

Adam Tech

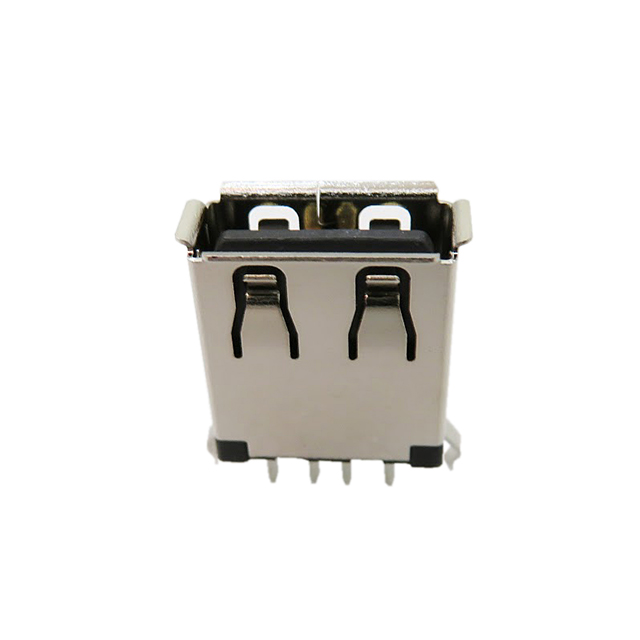

USB TYPE A SINGLE VERTICAL

Search across all available documentation for this part.

Active

Adam Tech

USB TYPE A SINGLE VERTICAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	USB-A-S-VT	USB-A Series

Connector Type	USB-A (USB TYPE-A)	USB-A (USB TYPE-A), Stacked
Contact Finish	Gold	Gold
Current Rating (Amps)	1.5 A	1.5 A
Gender	Receptacle	Plug, Receptacle
Insulation Color	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Vertical	Horizontal, Vertical
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole, Surface Mount, Right Angle
Number of Contacts	-	8 - 16
Number of Contacts [custom]	4	4
Number of Ports	1	1 - 4
Operating Temperature [Max]	60 °C	60 - 85 °C
Operating Temperature [Min]	-20 C	-55 - -20 C
Shell/Shielding Material	Brass	Steel, Brass, Copper Alloy, Steel (SPCC)
Shielding	Shielded	Shielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 - 250 VAC

USB TYPE A PLUG SINGLE R/A PCB

Part	Material Flammability Rating	Voltage - Rated	Specifications	Mounting Type	Number of Contacts [custom]	Connector Type	Number of Ports	Termination	Shielding	Gender	Mounting Feature	Shell/Shielding Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Current Rating (Amps)	Number of Contacts
Adam Tech USB-AP-S-RA	UL94 V-0	30 VAC	USB 2.0	Through Hole, Right Angle	4	USB-A (USB TYPE-A)	1	Solder	Shielded	Plug	Horizontal	Steel	Gold	-20 C	60 °C	Black
Adam Tech USB-A-S-VT	UL94 V-0	30 VAC	USB 2.0	Through Hole	4	USB-A (USB TYPE-A)	1	Solder	Shielded	Receptacle	Vertical	Brass	Gold	-20 C	60 °C	Black	1.5 A
Adam Tech USB-A-S-RA-SMT	UL94 V-0	30 VAC	USB 2.0	Surface Mount, Right Angle, Through Hole	4	USB-A (USB TYPE-A)	1	Solder	Shielded	Receptacle	Horizontal	Copper Alloy	Gold	-20 C	60 °C	Black	1.5 A
Adam Tech USB-A-Q-RA	UL94 V-0	250 VAC	USB 2.0	Through Hole, Right Angle		Stacked, USB-A (USB TYPE-A)	4	Solder	Shielded	Receptacle	Horizontal	Brass	Gold	-55 °C	85 °C	Black	1.5 A	16
Adam Tech USB-AP-S-RA-SMT	UL94 V-0	30 VAC	USB 2.0	Surface Mount, Right Angle, Through Hole	4	USB-A (USB TYPE-A)	1	Solder	Shielded	Plug	Horizontal	Steel (SPCC)	Gold	-20 C	60 °C	Black	1.5 A
Adam Tech USB-A-D-RA	UL94 V-0	30 VAC	USB 2.0	Through Hole, Right Angle		Stacked, USB-A (USB TYPE-A)	2	Solder	Shielded	Receptacle	Horizontal	Steel	Gold	-20 C	60 °C	Black		8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole
