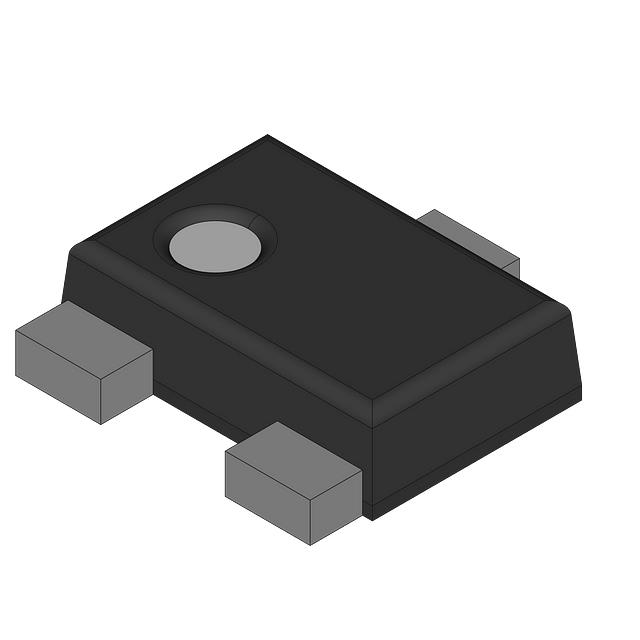

BCR129FE6327

Active

Infineon Technologies

TRANS PREBIAS NPN 50V SOT23-3

Search across all available documentation for this part.

Active

Infineon Technologies

TRANS PREBIAS NPN 50V SOT23-3

Technical Specifications

Parameters and characteristics for this part

Specification	BCR129FE6327

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120
Frequency - Transition	150 MHz
Grade	Automotive
Mounting Type	Surface Mount
Package / Case	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	200 mW
Qualification	AEC-Q101
Resistor - Base (R1)	10 kOhms
Supplier Device Package	PG-SOT23-3-3
Transistor Type	NPN - Pre-Biased
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Resistor - Base (R1)	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Package / Case	Supplier Device Package	Frequency - Transition	Transistor Type	Grade	Qualification
Infineon Technologies BCR129WH6327XTSA1	10 kOhms	250 mW	120	100 nA	Surface Mount	100 mA	50 V	300 mV	SC-70 SOT-323	PG-SOT323	150 MHz	NPN - Pre-Biased
Infineon Technologies BCR129WE6327HTSA1	10 kOhms	250 mW	120	100 nA	Surface Mount	100 mA	50 V	300 mV	SC-70 SOT-323	PG-SOT323	150 MHz	NPN - Pre-Biased
Infineon Technologies BCR129SH6327XTSA1		250 mW	120		Surface Mount	100 mA	50 V	300 mV	6-VSSOP SC-88 SOT-363	PG-SOT363-PO	150 MHz	2 NPN - Pre-Biased (Dual)
Infineon Technologies BCR129FE6327	10 kOhms	200 mW	120	100 nA	Surface Mount	100 mA	50 V	300 mV	SC-59 SOT-23-3 TO-236-3	PG-SOT23-3-3	150 MHz	NPN - Pre-Biased	Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10377	$ 0.03

General part information

Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 150 MHz 200 mW Surface Mount PG-SOT23-3-3
