OA200AN-22-1TB1856

Active

Orion Fans

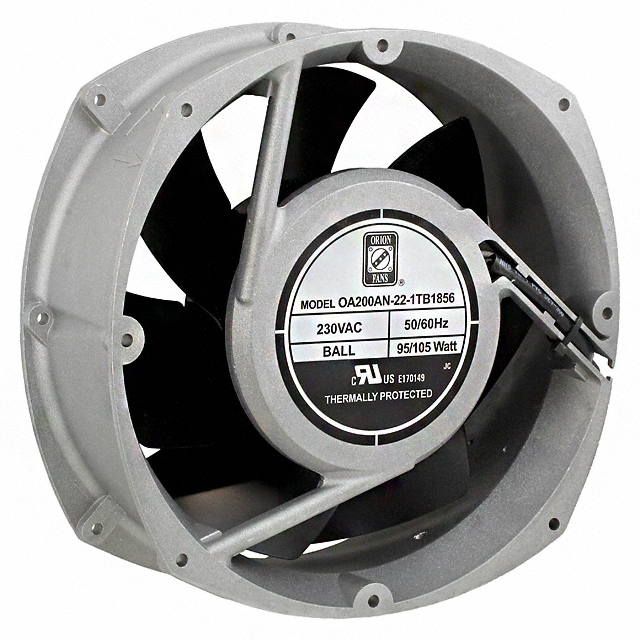

AXIAL FAN, AC, OA200AN-METAL SERIES, BALL BEARING, CIRCULAR, 485CFM, 68DB, 230V, 105W, 3300RPM

Search across all available documentation for this part.

Active

Orion Fans

AXIAL FAN, AC, OA200AN-METAL SERIES, BALL BEARING, CIRCULAR, 485CFM, 68DB, 230V, 105W, 3300RPM

Technical Specifications

Parameters and characteristics for this part

Specification	OA200AN-22-1TB1856

Air Flow	13.58 m³/min
Air Flow	485 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP56 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Metal
Material - Frame	Aluminum
Noise	68 dB
Power (Watts)	105 W
RPM	3300 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	220 mm
Size / Dimension [z]	200 mm
Static Pressure	231.7 Pa
Static Pressure	0.93 in H2O
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	4 lbs
Weight	1.8 kg
Width [y]	70 mm

Part	Ingress Protection	Material - Blade	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Material - Frame	Lifetime @ Temp.	Weight	Weight	Features	Voltage - Rated	Power (Watts)	Air Flow	Air Flow	Termination	Approval Agency	Width [y]	Fan Type	RPM	Static Pressure	Static Pressure	Bearing Type	Noise	Voltage Range [Max]	Voltage Range [Min]
Orion Fans OA200AN-22-1TB1856	IP56 - Dust Protected Water Resistant	Metal	200 mm	Rectangular/Rounded	220 mm	Aluminum	50000 Hrs	4 lbs	1.8 kg	Capacitor Thermal Overload Protector (TOP)	230 VAC	105 W	13.58 m³/min	485 CFM	2 Terminals	cURus TUV	70 mm	Tubeaxial	3300 RPM	231.7 Pa	0.93 in H2O	Ball	68 dB
Orion Fans OA200AN-11-1WB1856	IP56 - Dust Protected Water Resistant	Metal	200 mm	Rectangular/Rounded	220 mm	Aluminum	50000 Hrs	4 lbs	1.8 kg	Capacitor Thermal Overload Protector (TOP)	115 VAC	105 W	13.58 m³/min	485 CFM	2 Wire Leads	cURus TUV	70 mm	Tubeaxial	3300 RPM	231.7 Pa	0.93 in H2O	Ball	68 dB	120 VAC	100 VAC
Orion Fans OA200AN-22-1WB1856	IP56 - Dust Protected Water Resistant	Metal	200 mm	Rectangular/Rounded	220 mm	Aluminum	50000 Hrs	4 lbs	1.8 kg	Capacitor Thermal Overload Protector (TOP)	230 VAC	105 W	13.58 m³/min	485 CFM	2 Wire Leads	cURus TUV	70 mm	Tubeaxial	3300 RPM	231.7 Pa	0.93 in H2O	Ball	68 dB
Orion Fans OA200AN-11-1TB1856	IP56 - Dust Protected Water Resistant	Metal	200 mm	Rectangular/Rounded	220 mm	Aluminum	50000 Hrs	4 lbs	1.8 kg	Capacitor Thermal Overload Protector (TOP)	115 VAC	105 W	13.58 m³/min	485 CFM	2 Terminals	cURus TUV	70 mm	Tubeaxial	3300 RPM	231.7 Pa	0.93 in H2O	Ball	68 dB	120 VAC	100 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 101.03
Newark	Each	1	$ 140.88
		1000	$ 129.14

General part information

Fan Tubeaxial 230VAC Rectangular/Rounded - 220mm L x 200mm H Ball 485.0 CFM (13.58m³/min) 2 Terminals
