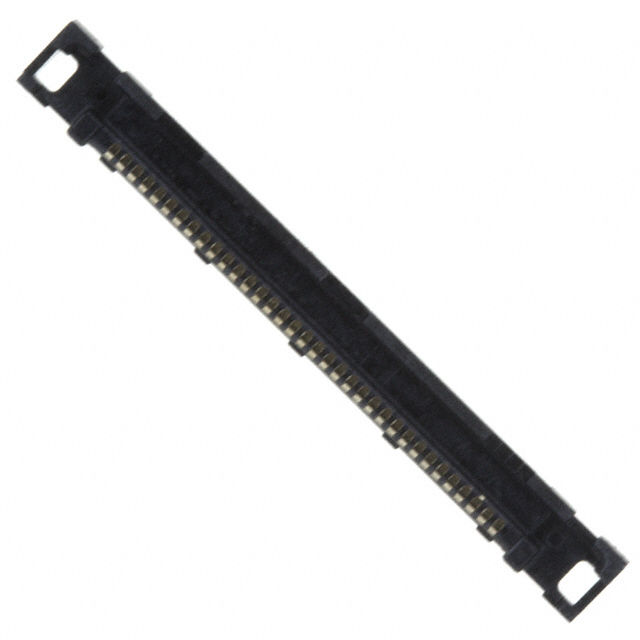

FI-J35C5

Obsolete

JAE Electronics

CONN PLUG 35POS SOLDER 42-44AWG

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN PLUG 35POS SOLDER 42-44AWG

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Accessory Type	For Use With/Related Products	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Material	Contact Finish - Mating	Number of Rows	Insulation Color	Number of Positions Loaded	Features	Mounting Type	Mated Stacking Heights	Contact Finish - Post	Material Flammability Rating	Voltage Rating	Insulation Material	Style	Applications	Termination	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Fastening Type	Pitch [x]	Pitch [x]	Wire Gauge [Max]	Wire Gauge [Min]	Cable Termination	Contact Finish	Color
JAE Electronics FI-J35C2-SH-D-10000	35	Cap (Cover)	FI-J Series
JAE Electronics FI-J35S-VF15N-R3000	35			85 °C	-40 °C	0.099 µm	3.9 µin	Receptacle	Copper Alloy	Gold	1	Black	All	Pick and Place Solder Retention	Surface Mount	1.58 mm	Gold	UL94 V-0	50 V	Plastic	Board to Cable/Wire	General Purpose	Solder	0.3 A	Flash	Non-Gendered	1.16 mm	0.046 in	0.016 in	0.4 mm	Friction Lock
JAE Electronics FI-J35S-VF15N	35			85 °C	-40 °C	0.099 µm	3.9 µin	Receptacle	Copper Alloy	Gold	1	Black	All	Pick and Place Solder Retention	Surface Mount	1.58 mm	Gold	UL94 V-0	50 V	Plastic	Board to Cable/Wire	General Purpose	Solder	0.3 A	Flash	Non-Gendered	1.16 mm	0.046 in	0.016 in	0.4 mm	Friction Lock
JAE Electronics FI-J35C5	35							Plug			1				Free Hanging (In-Line)											Non-Gender Specific						0.016 in	0.4 mm	46 AWG	42 AWG	Solder	Gold	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

35 Position Rectangular Plug Connector Solder Gold 42-44 AWG
