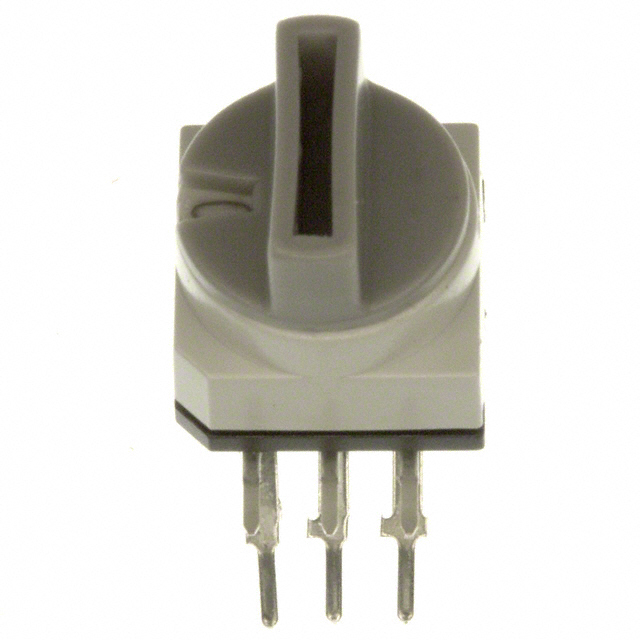

PT65501L508

Active

APEM

ROTARY SWITCH,RIGHT ANGLE,BCD,ON-OFF,NUMBER OF POSITIONS:10,PC TAIL TERMINAL,ROTARY SHAFT,PCB HOLE COUNT:6 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

ROTARY SWITCH,RIGHT ANGLE,BCD,ON-OFF,NUMBER OF POSITIONS:10,PC TAIL TERMINAL,ROTARY SHAFT,PCB HOLE COUNT:6 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch	Pitch [x]	Termination Style	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Mechanical Life	Length	Length	Body Material	Voltage Rating	Contact Material	Actuator Type	Washable	Actuator Level	Contact Finish
APEM PT65501L508	BCD	-20 C	70 °C	0.1 in	Full	2.54 mm	PC Pin	Through Hole Right Angle	10 mm	0.394 in	10	Sealed - Flux Protection	10000 Steps	10 mm	0.394 in	Thermoplastic	24 VDC	Phosphor Bronze	Rotary with Knob		Raised	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD 10 Position Through Hole, Right Angle Rotary with Knob Actuator 150mA 24VDC
