Technical Specifications
Parameters and characteristics for this part
| Specification | 184392-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.22 | |
| 10 | $ 2.93 | |||
| 25 | $ 2.77 | |||
| 50 | $ 2.71 | |||
| 100 | $ 2.58 | |||
| 250 | $ 2.26 | |||
| 500 | $ 2.19 | |||
| 1000 | $ 1.87 | |||
| 2500 | $ 1.74 | |||
Description
General part information

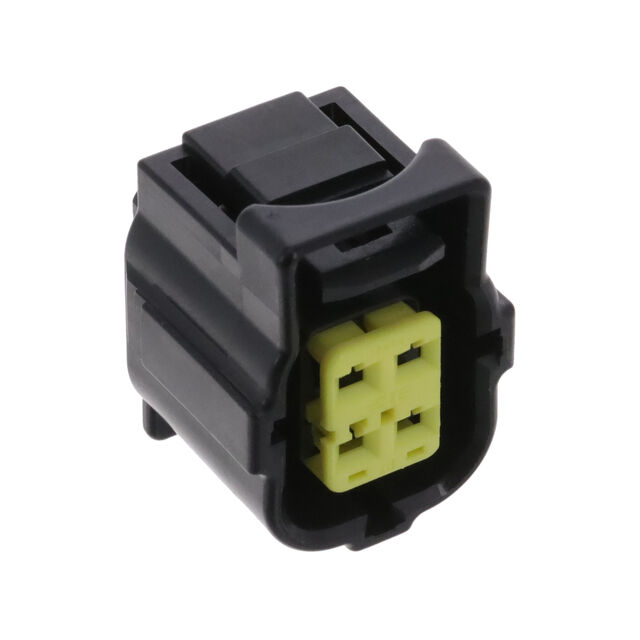

Sealed Sensor Connector SSC System Series
4 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Device / Wire-to-Wire, Sealed Sensor Connector SSC System
