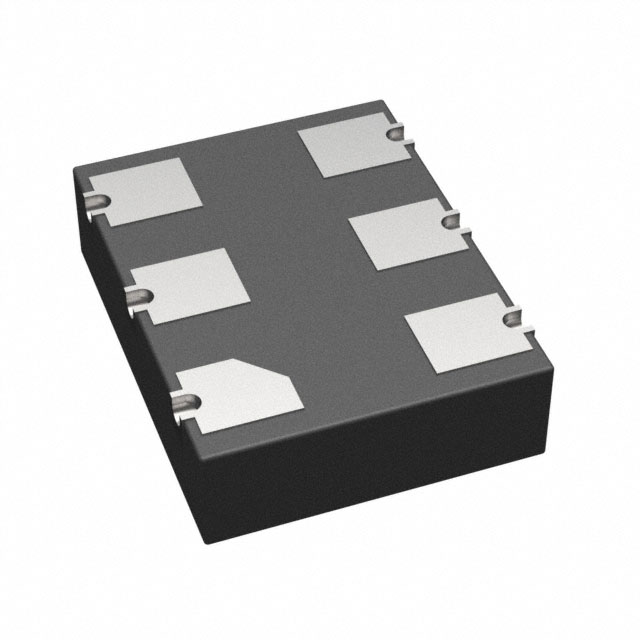

SIT3372AE-2BH-33NM122.880000

Active

SiTime

MEMS OSC VCXO 122.8800MHZ LVDS

Search across all available documentation for this part.

Active

SiTime

MEMS OSC VCXO 122.8800MHZ LVDS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

122.88 MHz VCXO LVDS Oscillator 3.3V 6-SMD, No Lead

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SIT3372AE-2BH-33NM122.880000	SIT3372 Series

Absolute Pull Range (APR)	30 ppm	5 - 30 ppm
Base Resonator	MEMS	MEMS
Current - Supply (Disable) (Max)	-	62 mA
Current - Supply (Max) [Max]	84 mA	84 mA
Frequency	122.88 MHz	122.88 MHz
Frequency Stability	15 ppm	15 ppm
Function	-	Enable/Disable
Height - Seated (Max) [Max] [z]	0.035 "	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.9 mm
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 ░C	70 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - -20 C
Output	LVDS	LVDS
Package / Case	6-SMD, No Lead	6-SMD, No Lead Exposed Pad, 6-SMD, No Lead
Size / Dimension [x]	3.2 mm	3.2 - 5 mm
Size / Dimension [x]	0.126 in	0.126 - 0.197 in
Size / Dimension [y]	2.5 mm	2.5 - 3.2 mm
Size / Dimension [y]	0.098 in	0.098 - 0.126 "
Type	VCXO	VCXO
Voltage - Supply	3.3 V	3.3 V

MEMS OSC VCXO 160.31588MHZ LVDS

Part	Current - Supply (Disable) (Max) [Max]	Package / Case	Current - Supply (Max) [Max]	Frequency Stability	Base Resonator	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Output	Type	Absolute Pull Range (APR)	Function	Voltage - Supply	Frequency
SiTime SIT3372AC-2CH-33EM160.315880	62 mA	6-SMD, No Lead Exposed Pad	84 mA	15 ppm	MEMS	0.035 "	0.9 mm	-20 C	70 °C	Surface Mount	0.197 in	0.126 "	3.2 mm	5 mm	LVDS	VCXO	5 ppm	Enable/Disable	3.3 V
SiTime SIT3372AE-2BH-33NM122.880000		6-SMD, No Lead	84 mA	15 ppm	MEMS	0.035 "	0.9 mm	-40 °C	105 ░C	Surface Mount	0.126 in	0.098 in	2.5 mm	3.2 mm	LVDS	VCXO	30 ppm		3.3 V	122.88 MHz
