CS16511_HB-IP-2X6-G2-W
ActiveLEDiL

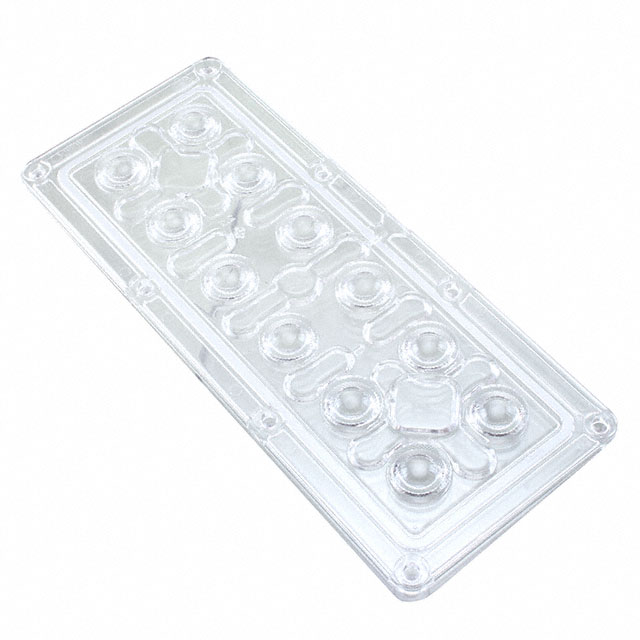

LENS ASSEMBLY CONTAINING LENS AND SEAL 60° WIDE BEAM PMMA/SILICONE CLEAR PIN/SCREW MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS16511_HB-IP-2X6-G2-W
ActiveLEDiL
LENS ASSEMBLY CONTAINING LENS AND SEAL 60° WIDE BEAM PMMA/SILICONE CLEAR PIN/SCREW MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS16511_HB-IP-2X6-G2-W |
|---|---|
| Color | Clear |
| For Use With/Related Manufacturer | Bridgelux, Osram, Lumileds, Nichia, Samsung, Cree |
| Lens Size [x] | 172 mm |
| Lens Size [y] | 71 mm |
| Lens Style | Rectangle with Multiple Top |
| Material | Acrylic |
| Mounting Type | Screw |
| Number of LEDs | 12 |
| Optical Pattern | Wide |
| Type | Lens |
| Viewing Angle [Max] | 66 ° |
| Viewing Angle [Min] | 58 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CS16511 Series
Lens Clear 58° ~ 66° Wide Screw
