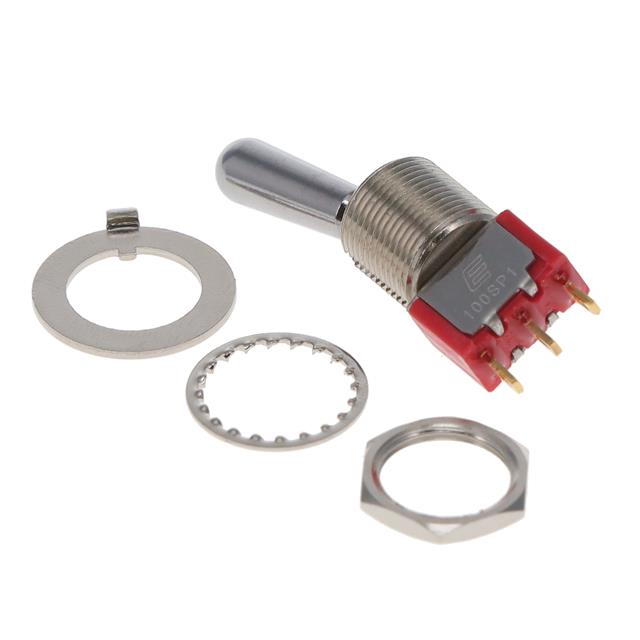

100SP1T8B13M1REH

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100SP1T8B13M1REH

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.91
		10	$ 3.52
		25	$ 3.35
		54	$ 3.21
		108	$ 3.10

Description

General part information

100SP1 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100SP1T8B13M1REH	100SP1 Series

Actuator Length	-	6.86 mm
Actuator Length [x]	18 mm	5.08 - 21.34 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round, Flat Anti-Rotation, Locking Lever
Bushing Thread	15/32-32	1/4-40, Unthreaded, 15/32-32, M6 x 0.75
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 - 5 A
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole, Through Hole, Right Angle, Vertical, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	11.91 mm	0.25 - 11.91 in
Switch Function	On-On	On-On, On-Mom
Termination Style	Solder Lug	Wire Wrap, PC Pin, Solder Lug, Quick Connect - 0.062" (1.5mm)
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

100SP1 Series

SWITCH TOGGLE SPDT 5A 120V

...

Part	Actuator Length [x]	Electrical Life	Illumination	Termination Style	Current Rating (Amps)	Voltage Rating - DC	Voltage Rating - AC	Circuit	Actuator Type	Actuator Material	Features	Switch Function	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Mounting Type
E-Switch 100SP1T4B1M51QE	16.26 mm	40000 Cycles	Non-Illuminated	Wire Wrap	5 A	28 V	120 V	SPDT	Standard Round	Brass, Chrome Plated	Epoxy Sealed Terminals	On-On	0.25 in	-30 ░C	85 °C	1/4-40
E-Switch 100SP1T5B4M2RE	21.34 mm	40000 Cycles	Non-Illuminated	PC Pin	0.4 VA	20 V	20 V	SPDT	Standard Round	Brass, Chrome Plated	Epoxy Sealed Terminals	On-On		-30 ░C	85 °C	Unthreaded	Through Hole
E-Switch 100SP1T1B2M6QE	10.41 mm	40000 Cycles	Non-Illuminated	PC Pin	5 A	28 V	120 V	SPDT	Standard Round	Brass, Chrome Plated	Epoxy Sealed Terminals	On-On		-30 ░C	85 °C	Unthreaded	Through Hole, Right Angle
E-Switch 100SP1T1B1VS3QEH	10.41 mm	40000 Cycles	Non-Illuminated	PC Pin	5 A	28 V	120 V	SPDT	Standard Round	Brass, Chrome Plated	Epoxy Sealed Terminals	On-On	0.25 in	-30 ░C	85 °C	1/4-40
E-Switch 100SP1T4B5M1QEH	16.26 mm	40000 Cycles	Non-Illuminated	Solder Lug	5 A	28 V	120 V	SPDT	Standard Round	Brass, Chrome Plated	Epoxy Sealed Terminals	On-On	0.25 in	-30 ░C	85 °C	1/4-40
E-Switch 100SP1T1B2M7QE	10.41 mm	40000 Cycles	Non-Illuminated	PC Pin	5 A	28 V	120 V	SPDT	Standard Round	Brass, Chrome Plated	Epoxy Sealed Terminals	On-On		-30 ░C	85 °C	Unthreaded	Right Angle, Through Hole, Vertical
E-Switch 100SP1T8B13M1REH	18 mm	40000 Cycles	Non-Illuminated	Solder Lug	0.4 VA	20 V	20 V	SPDT	Standard Round	Brass, Chrome Plated	Epoxy Sealed Terminals	On-On	11.91 mm	-30 ░C	85 °C	15/32-32
E-Switch 100SP1T2B9M1REH	5.08 mm	40000 Cycles	Non-Illuminated	Solder Lug	0.4 VA	20 V	20 V	SPDT	Standard Round	Brass, Chrome Plated	Epoxy Sealed Terminals	On-On	0.25 in	-30 ░C	85 °C	1/4-40
E-Switch 100SP1T1B1M53QEH	10.41 mm	40000 Cycles	Non-Illuminated	Wire Wrap	5 A	28 V	120 V	SPDT	Standard Round	Brass, Chrome Plated	Epoxy Sealed Terminals	On-On	0.25 in	-30 ░C	85 °C	1/4-40
E-Switch 100SP1T2B1M53REH	5.08 mm	40000 Cycles	Non-Illuminated	Wire Wrap	0.4 VA	20 V	20 V	SPDT	Standard Round	Brass, Chrome Plated	Epoxy Sealed Terminals	On-On	0.25 in	-30 ░C	85 °C	1/4-40
